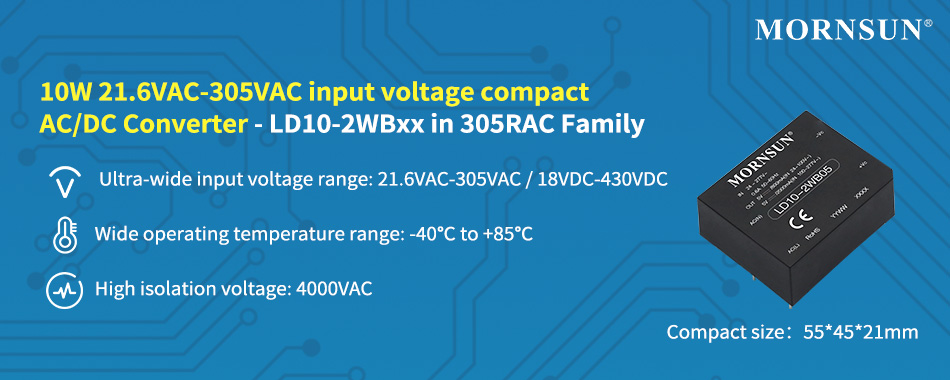

10W 21.6VAC-305VAC input voltage compact AC/DC Converter LD10-2WBxx in 305RAC Family


Based on the market demand and the design of the LD10-23BxxR2 series in the 305RAC Family, MORNSUN launched the new 10W AC/DC converter LD10-2WBxx series with an ultra-wide input voltage range of 21.6VAC-305VAC/18VDC-430VDC. These AC to DC converter products feature a compact size of 55*45*21mm and an operating temperature range of 40℃ to +85℃, making them a reliable solution for applications with high requirements of space and input voltage.


Advantages

1. Ultra-compact size: 55.00*45.00*21.00mm

2. Ultra-wide input voltage range: 21.6VAC-305VAC / 18VDC-430VDC

Compatible with 24VDC, 110/220/277VAC inputs, AC-DC dual-use, meet the universal voltage range.

3. Wide operating temperature range: -40℃ to +85℃

Meets the altitude requirements of 5000m and the environmental requirements of extremely low temperature and poor ventilation conditions.

4. High reliability and excellent EMC performance

a. High isolation voltage up to 4000VAC

b. Meet IEC/EN/UL62368/EN60335 (White goods) /EN61558 standards.

c. EMI meets CLASS A and meets CLASS B with peripheral circuits.


Applications

It can be widely used in industry, electric power, instrument, communication, civil power, etc.



Features

  • Compact size: 55.00*45.00*21.00mm

  • Ultra-wide input voltage range: 21.6VAC-305VAC / 18VDC-430VDC

  • Wide operating temperature range: -40℃ to +85℃

  • EMI meets CLASS A and meets CLASS B with peripheral circuits

  • Meets the altitude requirements of 5000m

  • Meet IEC/EN/UL62368/EN60335 (White goods) /EN61558 standards

  • High isolation voltage up to 4000VAC

  • Leakage current as low as 277Vac/<0.1mA

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LD10-2WB05 10 21.6-305 18-430 5 2000mA 1 4000VAC DIP 55.00*45.00*21.00
LD10-2WB09 9.9 21.6-305 18-430 9 1100mA 1 4000VAC DIP 55.00*45.00*21.00
LD10-2WB12 9.96 21.6-305 18-430 12 830mA 1 4000VAC DIP 55.00*45.00*21.00
LD10-2WB15 10.05 21.6-305 18-430 15 670mA 1 4000VAC DIP 55.00*45.00*21.00
LD10-2WB24 10.08 21.6-305 18-430 24 420mA 1 4000VAC DIP 55.00*45.00*21.00
