85-305VAC Wide Input Voltage AC/DC Converters LDE02-23Bxx Series
    MORNSUN adds 85-305VAC cost-effective AC/DC converters series LDE02-23Bxx to its LDE series portfolio, which is compatible with the previous LD02-10Bxx series and has higher isolation voltage and better operating temperature range. With this LDE02-23Bxx series come out, the entire LDE series provide powers of 2W, 3W, 5W, 6W, 10W, 15W and 20W.

Product advantages are as follows:
1)Better operating temperature, higher isolation voltage
i)High isolation: 4000VAC. It improves product reliability and protects the system effectively.

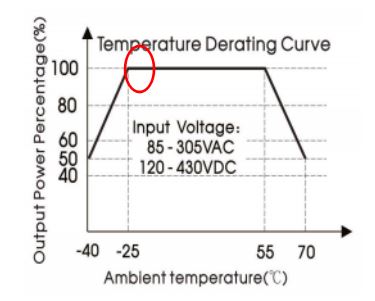

ii)Wide range operating temperature: the lowest temperature is extended from -25℃ to -40℃  without derating at -25℃; ideal for more various environments.

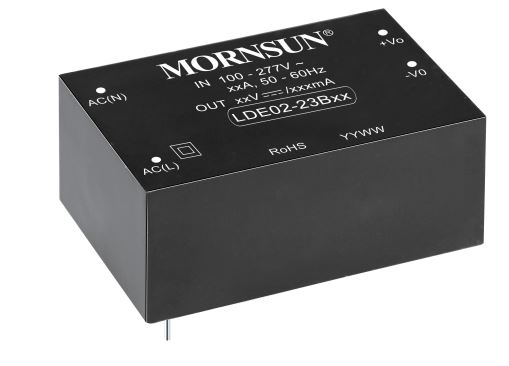

                   LDE02-23Bxx Series

2)Cost-effective
Material normalization, production automation, higher product consistency and reliability, better performance and price.
3)High reliability and complete protections
These series have a MTBF over 300,000 h and provide protections of output short circuit (OSC), output over-current (OCP), which not only significantly reduce the failure rate of the converter itself but also enhance the safety performance of back-end power modules and the load in abnormal working conditions.
Product design complies with IEC62368, UL62368 and EN62368 standards (pending).

Applications:
Widely used in the applications of industrial control, grid power, instrumentation, communication and civilian use.

Features:

▶ Wide Input voltage Range: 85 - 305VAC/120 - 430VDC

▶ AC and DC dual-use(input from the same terminal)

▶ High isolation voltage up to 4K VAC

▶ Operating temperature range: -40℃ to +70℃

▶ High power density, high efficiency, environmental friendly

▶ Output short circuit, over-output current protections

▶ Meets CISPR32/EN55032 CLASS B

▶ Meet IEC62368, UL62368, EN62368 standards(Pending)

▶ PCB mounting, Chassis mounting, Din-Rail mounting available



Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
LDE02-23B03 2 85~305 3.3 1 4000 DIP 33.70*22.20*18.00 3D MODEL CE UL CB LDE02-23B03
LDE02-23B05 2 85~305 5 1 4000 DIP 33.70*22.20*18.00 3D MODEL CE UL CB LDE02-23B05
LDE02-23B09 2 85~305 9 1 4000 DIP 33.70*22.20*18.00 3D MODEL CE UL CB LDE02-23B09
LDE02-23B12 2 85~305 12 1 4000 DIP 33.70*22.20*18.00 3D MODEL CE UL CB LDE02-23B12
LDE02-23B15 2 85~305 15 1 4000 DIP 33.70*22.20*18.00 3D MODEL CE UL CB LDE02-23B15
LDE02-23B24 2 85~305 24 1 4000 DIP 33.70*22.20*18.00 3D MODEL CE UL CB LDE02-23B24
