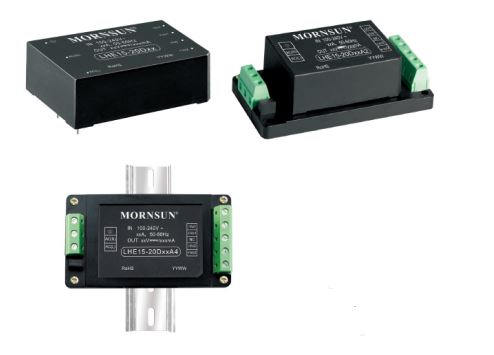

5-20W Cost-effective Multi-output AC/DC Converters LHE series
Due to the popularity of previous single output series LDExx-20Bxx and LHExx-20Bxx, MORNSUN adds 5-20W cost-effective multi-output AC/DC converters LHE series to its AC/DC family this month. The LHE new series includes dual output LHExx-20Axx series, triple output LHExx-20Cxx series and isolated dual output LHExx-20Dxx series.

Product advantages are as follows:
1)Cost-effective
Material normalization, production automation, higher product consistency and reliability, better performance and price.

2)Better operating temperature, higher isolation voltage
i) Operating temperature expanded to -40℃ to 70℃ with less derating at high temperature and low temperature.
ii) High isolation: 4000VAC. It effectively improves product reliability and protects the system safety.

3)High reliability and complete protections
These series have a MTBF over 300,000 h and provide protections of output short circuit (OSC), output over-current (OCP), output over-voltage (OVP), which not only significantly reduce the failure rate of the converter itself but also enhance the safety performance of back-end power modules and the load in abnormal working conditions.

Applications:
Widely used in LED, street lighting control, grid power, instrumentation, industrial control, communication and civil applications.

Features:
Universal Input: 85 - 264VAC/100 - 370VDC
▶ Operating temperature range: -40℃ to +70℃ (LHE05 series: -30℃ to 70℃ )
▶ High isolation voltage: 4000VAC
▶ Regulated output, Low ripple & noise
▶ Output short circuit, over-current, over-voltage protection
▶ Plastic case, meets UL94V-0

▶ EMI performance meets CISPR32/EN55032 CLASS B



Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
LHE05-20D0505-01 5 85~264 5,5 2 4000 DIP 48.50*36.00*20.50 3D MODEL - LHE05-20D0505-01
LHE05-20D0512-01 5 85~264 5,12 2 4000 DIP 48.50*36.00*20.50 3D MODEL - LHE05-20D0512-01
LHE05-20D0515-01 5 85~264 5,15 2 4000 DIP 48.50*36.00*20.50 3D MODEL - LHE05-20D0515-01
LHE05-20D0524-01 5.4 85~264 5,24 2 4000 DIP 48.50*36.00*20.50 3D MODEL - LHE05-20D0524-01
LHE10-20A05 10 85~264 ±5 2 4000 DIP 55.00*45.00*21.00 3D MODEL - LHE10-20A05
LHE10-20A12 10 85~264 ±12 2 4000 DIP 55.00*45.00*21.00 3D MODEL - LHE10-20A12
LHE10-20A15 10 85~264 ±15 2 4000 DIP 55.00*45.00*21.00 3D MODEL - LHE10-20A15
LHE10-20D0505-02 10 85~264 5,5 2 4000 DIP 55.00*45.00*21.00 3D MODEL - LHE10-20D0505-02
LHE10-20D0512-02 10 85~264 5,12 2 4000 DIP 55.00*45.00*21.00 3D MODEL - LHE10-20D0512-02
LHE10-20D0515-02 10 85~264 5,15 2 4000 DIP 55.00*45.00*21.00 3D MODEL - LHE10-20D0515-02
LHE10-20D0524-02 10 85~264 5,24 2 4000 DIP 55.00*45.00*21.00 3D MODEL - LHE10-20D0524-02
LHE15-20D0505-08 15 85~264 5,5 2 4000 DIP 62.00*45.00*22.50 3D MODEL - LHE15-20D0505-08
LHE15-20D0512-04 15 85~264 5,12 2 4000 DIP 62.00*45.00*22.50 3D MODEL - LHE15-20D0512-04
LHE15-20D0524-02 15 85~264 5,15 2 4000 DIP 62.00*45.00*22.50 3D MODEL - LHE15-20D0524-02
LHE15-20D0524-04 15 85~264 5,24 2 4000 DIP 62.00*45.00*22.50 3D MODEL - LHE15-20D0524-04
LHE20-20D0512-06 20 85~264 5,12 2 4000 DIP 70.00*48.00*23.50 3D MODEL - LHE20-20D0512-06
LHE20-20D0515-05 20 85~264 5,15 2 4000 DIP 70.00*48.00*23.50 3D MODEL - LHE20-20D0515-05
LHE20-20D0524-03 20 85~264 5,24 2 4000 DIP 70.00*48.00*23.50 3D MODEL - LHE20-20D0524-03
