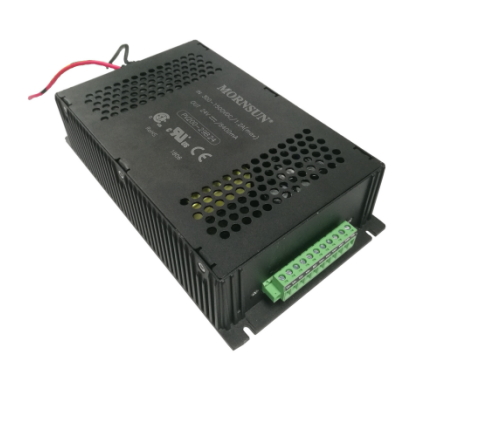

200W 300-1500VDC Input with Isolated output DC DC converter PV200-29Bxx Series

MORNSUN recently introduced 200W PV200-29Bxx series which has an input voltage of 300-1500VDC to further meet customer demand of Ultra-wide & Ultra-high Input Voltage in new energy system. They can be widely used in photovoltaic power generation, energy storage BMS, high voltage inverter and other industries.

Advantages :

1) Ultra-wide & ultra-high input voltage, high power, high efficiency
PV200-29Bxx series provides a wide input voltage range of 300-1500VDC, power up to 200W to meet higher demands for high-power power supply in ultra-wide and ultra-high input voltage application, and high efficiency up to 87%, low power consumption and more energy-saving.

2) Complete protection, high reliability
PV200-29Bxx series have input under-voltage protection to avoid frequent restart of system to maintain the system’s stability. Offering MTBF over 300,000h, they have reverse input voltage protection, output short circuit, over-current and over-voltage protection. These protections greatly reduce the probability of failure of the power supply itself while greatly enhance the safety performance of the module power supply and the load under abnormal working conditions.

3) UL1741、CSA-C22.2 No.107.1、EN62109 certified (pending)
PV200-29Bxx series meet UL1741、CSA-C22.2 No.107.1、EN62109 standards (pending) with a certified voltage of 1500VDC. The series offers isolation voltage up to 4000VAC and high reliability, to effectively protect the safety of the system.

Photovoltaic power generation, energy storage BMS, high voltage inverter and etc.

Ultra wide input voltage range: 300-1500VDC
4000VAC high isolation voltage
Industrial grade operating temperature: -40℃ to +70℃
High efficiency, Low ripple & noise
Input under-voltage protection, reverse input voltage protection, output short circuit, over-current, over-voltage protection
High reliability, Long lifespan
Meets UL1741, CSA-C22.2 No.107.1, EN62109 standards (Pending)

200W 300-1500VDC Input with Isolated output DC DC converter PV200-29Bxx Series

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
PV200-29B24 200 300-1500 24 1 4000VAC Chassis 215.00*125.00*50.00
PV200-29B32 200 300-1500 32 1 4000VAC Chassis 215.00*125.00*50.00
PV200-29B48 200 300-1500 48 1 4000VAC Chassis 215.00*125.00*50.00
