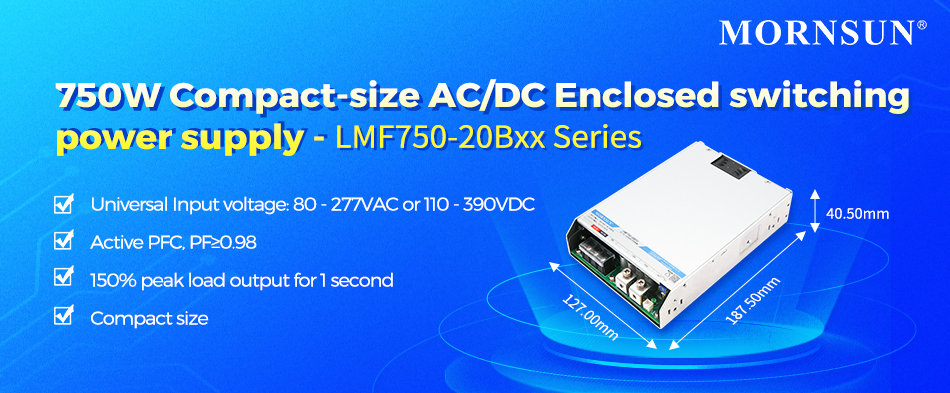

750W Compact-size AC/DC Enclosed switching power supply - LMF750-20Bxx Series

750W Compact-size AC/DC Enclosed switching power supply - LMF750-20Bxx Series.jpg

Introduction

With the increasing demand for medium and high power segment power supply, MORNSUN fulfills the product line of AC/DC enclosed switching power supply, and newly launches 750W LMF750-20Bxx series with active PFC.


The LMF750-20Bxx features a compact size, a wide operating temperature range of -40℃ to +70℃, and high efficiency of 94%. It is a safe and reliable power solution for industrial control and medical applications, etc.



Advantages

Compact size: 187.50mm×127.00mm×40.50mm

High efficiency of 94%

Wide operating temperature range of -40℃ to +70℃

High reliability

  • EMI meets CISPR32 EN55032 CLASS B, ESD meets Contact1±8KV/Air ±15KV

  • 150% peak load output for 1 second

  • 4000VAC high isolation voltage

  • Safety according to IEC/EN/UL62368, IEC/EN/UL60601, GB4943 standards

  • 5-year warranty



Applications

The LMF750-20Bxx can be widely used in the fields of industrial control system, automation machinery, laser instrument, aging equipment, measurement and control equipment, and medical, etc.

LMF750-20Bxx can be widely used in the fields of industrial control system and medical.jpg



Features

  • Universal Input voltage: 80 - 277VAC or 110 - 390VDC

  • Accepts AC or DC input (dual-use of same terminal)l

  • Operating ambient temperature range: -40℃to+70℃l

  • High efficiency up to 94%

  • Active PFC, PF≥0.98

  • Remote sense compensation, remote ON/OFF function

  • 150% peak load output for 1 second

  • Provide 5V/2A Standby Output

  • Output short-circuit, over-current, over-voltage, over-temperature protections

  • Operating altitude up to 5000ml

  • Safety according to IEC/EN/UL62368, IEC/EN/UL60601, GB4943


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample Buy
LMF750-20B12 750 80-277 110-390 12 62.5A 92 4000VAC
-
LMF750-20B15 750 80-277 110-390 15 50A 92 4000VAC
-
LMF750-20B24 750 80-277 110-390 24 31.3A 94 4000VAC
-
LMF750-20B27 750 80-277 110-390 27 27.8A 94 4000VAC
-
LMF750-20B48 750 80-277 110-390 48 15.7A 94 4000VAC
-
