New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters

  MORNSUN continued to enrich and expand existing packages (DIP24, 1*1 and 2*1) of DC/DC Converters and developed new ultra-thin 6W and 10W DC/DC Converters, to meet customers’ differential needs for packages in practical applications.

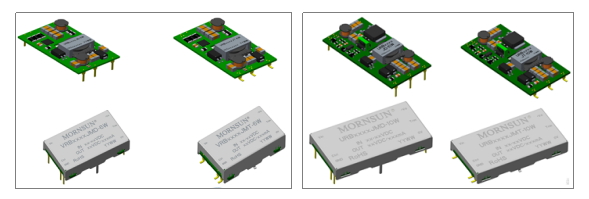

  The dimension of 6W converter is 31.60*18.10*6.10mm (about 1.24*0.71*0.24 inch) and 10W is 39.20*20.80*6.10mm (about 1.54*0.82*0.24 inch). Packages are available in SMD, DIP, open frame and metal case.
  When it comes to performance, the new SMD 6W and 10W DC/DC Converters feature R3 DC/DC Converters’ advantages, providing isolation of 500VAC, efficiency up to 88%, no-load power consumption as low as 0.096W, multiple protections including SCP, OCP, OVP and input UVP.



Features:

 Ultra-thin DC/DC Converters in DIP/SMD package
 Ultra-wide input voltage range: 4:1, 2:1
◆ Efficiency high up to 88%
◆ No-load power consumption as low as 0.096W
◆ Isolation voltage: 500VAC
◆ Operating temperature range: -40℃ to +85℃
◆ Protections: SCP, OCP, OVP and input UVP


New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters

Part Number

Power

 (W)

Input Voltage Range

Output Voltage (VDC)

No. of outputs

Isolation
(VAC)

Package

Dimension

 (mm)

Certification
Sample

URB-JD-10W

10

24
(9-36)

5,12, 15

1

500

DIP
39.20*20.80*6.10
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC ConvertersNew Ultra-thin 6W and 10W SMD/DIP DC/DC ConvertersNew Ultra-thin 6W and 10W SMD/DIP DC/DC Converters
URB-JT-10W
1024
(9-36)
5,12, 15
1
500
SMD
41.40*20.80*6.30
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters
URB-JMD-10W
1024
(9-36)
5,12, 15
1
500
DIP
40.20*22.00*6.80
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters
URB-JMT-10W
1024
(9-36)
5,12, 15
1
500
SMD
41.40*22.00*7.00
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters
VRB-JD-6W
612 (9-18)
24 (18-36)
3.3, 5,12, 15
1
500
DIP
31.60*18.10*6.10
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters
VRB-JT-6W
612 (9-18)
24 (18-36)
3.3, 5,12, 15
1
500
SMD
33.78*18.10*6.30
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters
VRB-JMD-6W
612 (9-18)
24 (18-36)
3.3, 5,12, 15
1
500
DIP
32.60*18.6*6.80
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters
VRB-JMT-6W
612 (9-18)
24 (18-36)
3.3, 5,12, 15
1
500
SMD
33.78*18.6*7.00
ROHS
New Ultra-thin 6W and 10W SMD/DIP DC/DC Converters



Please refer to the technical manual for specific product parameters:

http://www.mornsun-power.com/html/product/6-30W-(Optional-mounting).html



* For detailed information please refer to the related datasheet, product news is for reference only.
