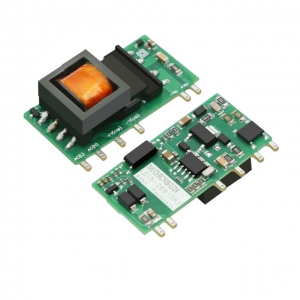

LS15-26BxxR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LS15-26B03R3 | 9.9 | 176-528 | 248-745 | 3.3 | 3000mA | 1 | 3600VAC | SIP | 40.04*20.00*15.25 | ||||
| LS15-26B05R3 | 14 | 176-528 | 248-745 | 5 | 2800mA | 1 | 3600VAC | SIP | 40.04*20.00*15.25 | ||||
| LS15-26B09R3 | 15 | 176-528 | 248-745 | 9 | 1670mA | 1 | 3600VAC | SIP | 40.04*20.00*15.25 | ||||
| LS15-26B12R3 | 15 | 176-528 | 248-745 | 12 | 1250mA | 1 | 3600VAC | SIP | 40.04*20.00*15.25 | ||||
| LS15-26B15R3 | 15 | 176-528 | 248-745 | 15 | 1000mA | 1 | 3600VAC | SIP | 40.04*20.00*15.25 | ||||
| LS15-26B24R3 | 15 | 176-528 | 248-745 | 24 | 625mA | 1 | 3600VAC | SIP | 40.04*20.00*15.25 |
* For reference only. The detailed info please refer to the datasheet.
