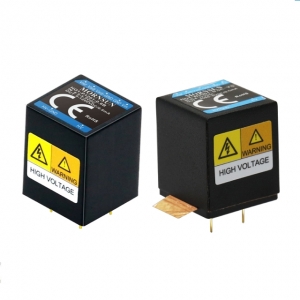

HO1-P(N)-0.5C(0.6B)
Features
HO1-P(N)1201-0.6B series offer 0.72W of output, with operating ambient temperature range -40℃ to +85℃, input reverse polarity protection, output short circuit protection, over-current protection, ultra compact size, low ripple, low time coefficient and temperature coefficient, which are specifically designed for applications in board power systems where high voltages are required and output ripple requirements are high and output voltage stability is critical. They are widely used in fields such as photomultiplier tubes, mass spectrum, light spectrum, electron beam, ion beam, avalanche diodes
Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
HO1-P1201-0.6B | 0.72 | 5(4.5-5.5) | 0~1200 | 1 | DIP | 15.00*15.00*18.00 | |||||
HO1-N1201-0.6B | 0.72 | 5(4.5-5.5) | 0~-1200 | 1 | DIP | 15.00*15.00*18.00 | |||||
HO1-P1501-0.5C | 0.75 | 12(10.8-13.2) | 0~1500 | 1 | DIP | 15.00*15.00*18.00 | |||||
HO1-N1501-0.5C | 0.75 | 12(10.8-13.2) | 0~-1500 | 1 | DIP | 15.00*15.00*18.00 |
* For reference only. The detailed info please refer to the datasheet.
