1500W High-power AC/DC Enclosed Power Supply - LM1500-22Bxx Series
MORNSUN has expanded its highly cost-effective AC/DC enclosed switch power supplies with the 1500W product of LM1500-22Bxx series. Until Now this series of power ranges has covered 15-1500W, meeting the different power demands of various application scenarios.
Advantages

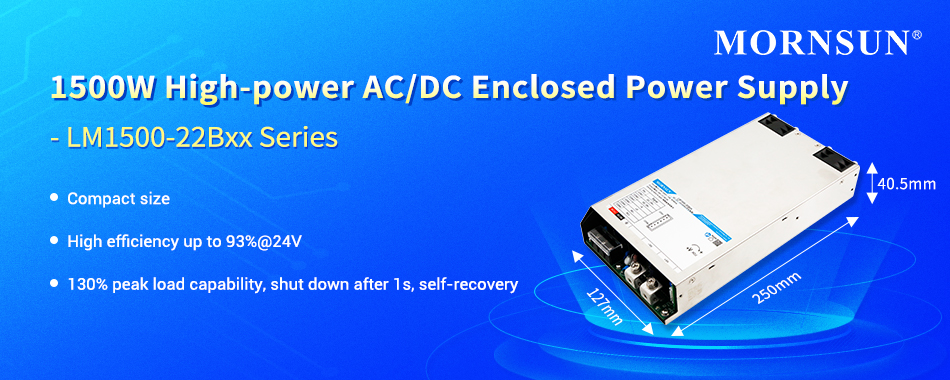

1. Compact size: 250*127*40.5mm, 40% smaller than mainstream products on the market
2. High performance
Full load operating temperature range: -30℃ to +50℃
High efficiency up to 93%@24V
130% peak load capability, shut down after 1s, self-recovery
(Mainstream products meet 105% peak load capability, power-off & self-recovery when overcurrent)
3. High reliability
Operating temperature range: -40℃ to +70℃
Operating altitude up to 5000m
EMI meets perf. Criteria A
High isolation voltage up to 4000VAC, protect users with high voltage requirements
Output short circuit, over-current, over-voltage, over-temperature protections
Remote compensation
Safe terminal spacing design and reliable bottom riveted studs
3 years warranty
4. Digital design for easy application
Remote ON/OFF
DC OK function
LED indicates the power on
Applications

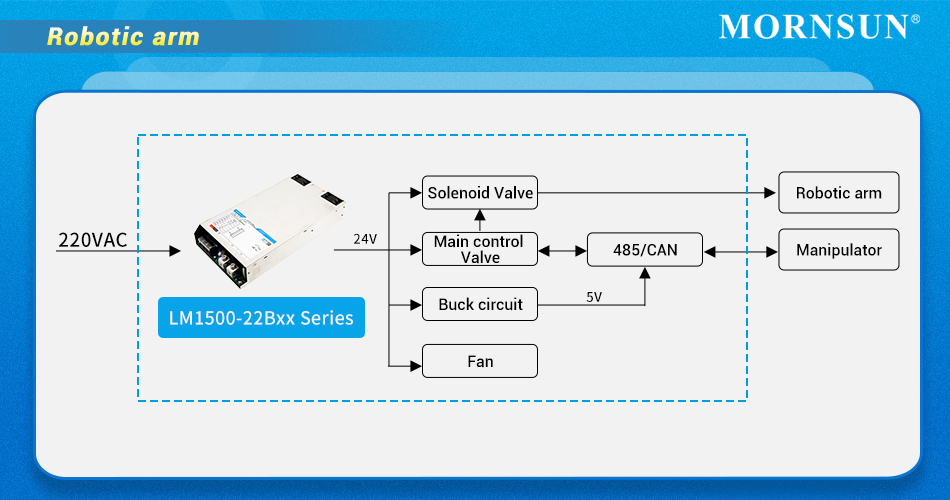

LM1500-22Bxx series can be widely used in industrial control system, street light control, electric power, smart home, security, communication and other fields.
Features
Universal 180 - 277VAC or 250 - 380VDC Input voltage
Compact size: 250*127*40.5mm
Operating temperature range: -40℃ to +70℃
High isolation voltage up to 4000VAC
Output short circuit, over-current, over-voltage, over-temperature protections
Operating altitude up to 5000m
Safety according to UL/EN/BS EN62368 standards
