5-10W Ultra-Compact Size AC/DC converter Series LSxx-13Bxx

MORNSUN launched a ultra-compact size AC/DC converter series LSxx-13Bxx which cover 5W, 8W and 10W, as an extension of previous LS series. Now, the power range of MORNSUN LS family can provide 1W, 3W, 5W, 8W and 10W.

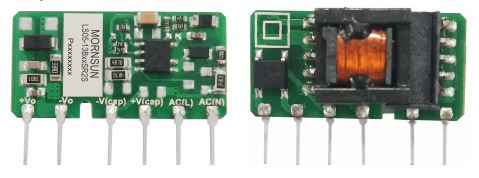

Housed in compact vertical and 90 degree bent SIP packages, the new open frame LSxx-13Bxx series can be DIY with the peripheral components to meet different application requirements, which are very flexible for the PCB layout especially for applications where limited board real-estate is a factor.

Product advantages:
1. Compact size
● The dimension of LS05-13B-SR2S series is 35.00x18.00x11.00 mm.
● The dimensions of LS08-13B-SS and LS10-13B-SS series are 44.50 x 24.00 x 15.00mm.

2. High flexible

Vertical and 90 degree bent SIP packages are both available. This new open frame LSxx-13Bxx series can be DIY with the peripheral components and are very flexible for the PCB layout especially for applications where limited board real-estate is a factor.



Applications:
Widely used in industrial and commercial applications, especially for IoT, smart home and small household appliances.

Features:
● Wide input voltage range: 85-305VAC and 100-430VDC
● AC or DC input are both available
● Operating temperature range: -40℃ ~ +85℃
● Wide applications, flexible layout

● High power density, high reliability

● Low power consumption, green power
● Output short circuit(OSC), over-current protection(OCP)
● Meets IEC/EN/UL62368 safety standards (Pending)

● Meet IEC/EN/UL60335 safety standards


5-10W Ultra-Compact Size AC/DC converter Series LSxx-13Bxx


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LS05-13B03SR2S 3.3 85-305 70-430 3.3 1000mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B05SR2S 5 85-305 70-430 5 1000mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B05SR2S-F 5 85-305 70-430 5 1000mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B09SR2S 5 85-305 70-430 9 560mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B09SR2S-F 5 85-305 70-430 9 560mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B12SR2S 5 85-305 70-430 12 420mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B12SR2S-F 5 85-305 70-430 12 420mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B15SR2S 5 85-305 70-430 15 340mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B15SR2S-F 5 85-305 70-430 15 340mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B24SR2S 5 85-305 70-430 24 210mA 1 3000VAC SIP 35.00*18.00*11.00
LS05-13B24SR2S-F 5 85-305 70-430 24 210mA 1 3000VAC SIP 35.00*18.00*11.00
LS08-13B03SS 5.28 85-305 100-430 3.3 1600mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B03SS-F 5.28 85-305 100-430 3.3 1600mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B05SS 8 85-305 100-430 5 1600mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B05SS-F 8 85-305 100-430 5 1600mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B09SS 8 85-305 100-430 9 880mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B09SS-F 8 85-305 100-430 9 880mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B12SS 8 85-305 100-430 12 670mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B12SS-F 8 85-305 100-430 12 670mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B15SS 8 85-305 100-430 15 530mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B15SS-F 8 85-305 100-430 15 530mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B24SS 8 85-305 100-430 24 330mA 1 3000VAC SIP 44.50*24.00*15.00
LS08-13B24SS-F 8 85-305 100-430 24 330mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B03SS 6.6 85-305 100-430 3.3 2000mA 1 3600VAC SIP 44.50*24.00*15.00
LS10-13B03SS-F 6.6 85-305 100-430 3.3 2000mA 1 3600VAC SIP 44.50*24.00*15.00
LS10-13B05SS 10 85-305 100-430 5 2000mA 1 3600VAC SIP 44.50*24.00*15.00
LS10-13B05SS-F 10 85-305 100-430 5 2000mA 1 3600VAC SIP 44.50*24.00*15.00
LS10-13B09SS 10 85-305 100-430 9 1100mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B09SS-F 10 85-305 100-430 9 1100mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B12SS 10 85-305 100-430 12 830mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B12SS-F 10 85-305 100-430 12 830mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B15SS 10 85-305 100-430 15 670mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B15SS-F 10 85-305 100-430 15 670mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B24SS 10 85-305 100-430 24 420mA 1 3000VAC SIP 44.50*24.00*15.00
LS10-13B24SS-F 10 85-305 100-430 24 420mA 1 3000VAC SIP 44.50*24.00*15.00
