10W 85-528VAC Ultra-wide Input Voltage SIP AC/DC Converter for flexible design --- LS10-26BxxR3 Series

10W 85-528VAC Ultra-wide Input Voltage SIP AC/DC Converter for flexible design --- LS10-26BxxR3 Series.jpg

MORNSUN expands the power range on the basis of the 5W series and launches the 10W ultra-wide input voltage SIP AC/DC converter LS10-26BxxR3 series.



It features an input voltage range of 85-528VAC, a wide operating temperature range of -40℃ to +85℃, and an ultra-small size, which can be flexible use with suitable peripheral circuits, making it a low power consumption and cost-effective unique power solutions.


Advantages of AC/DC converter LS10-26BxxR3 series

Ultra-small size

With an ultra-compact size of 38*20*15.25 mm, mini ac dc converter are flexible for multiple applications with specific peripheral circuits, solving the space shortage problem in customers' design to improve space utilization.


Ultra-wide input voltage range

With the input voltage range of 85-528VAC/100-745VDC, this series meets the application requirements of three-phase voltage (380VAC), covering different regional grid voltage of 110VAC, 220VAC, 240VAC, 277VAC, 380VAC, and 480VAC.


Wide operating temperature range

With the temperature range of -40℃ to +85℃, this series meets the requirements of the cold regions and poor ventilation conditions.


Flexible design for a wide range of applications

Coupling with the specific peripheral circuit, they are not only the ideal solution for consumer electronics with their cost-effectiveness but also can be used in harsh industrial environments with their high reliability.


Outstanding EMC performance

a. High isolated voltage up to 4000VAC, EMI can meet CLASS A or CLASS B with the recommended peripheral circuits in the datasheet.

b. High-level EMS protection, surge meet CLASS A and stable output under the surge voltage increased to 1.1 times.

c. Low standby power consumption is 0.5W and is as low as 0.15W under 230VAC input.

d. Meets IEC/EN62368、IEC62477、IEC/EN61010 standard.

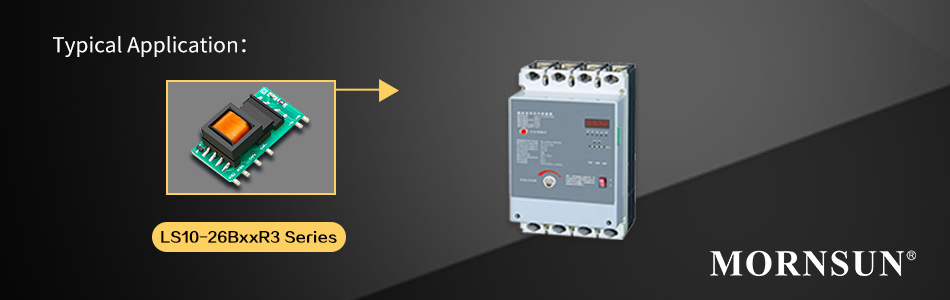

Applications of SIP AC/DC converter LS10-26BxxR3 series

LS10-26BxxR3 Series low cost ac dc converter can be widely used in occasions with space shortage problems such as power meter and industrial control. It must be used with EMC peripheral circuit when applied in strict EMC environments.

10W 85-528VAC wide Input Voltage SIP AC/DC Converter for flexible design.jpg


Features of SIP AC/DC converter LS10-26BxxR3 series

  • Accepts AC or DC input (dual-use of the same terminal)

  • 85-528VAC / 100-745VDC input, meets the various region’s input voltage of 110VAC, 220VAC, 240VAC, 277VAC, 380VAC, and 480VAC, etc.

  • Wide operating temperature range: -40℃ to +85℃, meets the requirements of the cold regions and poor ventilation conditions.

  • Flexible layout

  • A green power with the ultra-small size of 38*20*15.25mm, high power density (Lifespan and cost are controllable)

  • Low standby power consumption is 0.5W

  • Meets IEC/EN62368、IEC62477、IEC/EN61010 standard.


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LS10-26B03R3 6.6 85-528 100-745 3.3 2000mA 1 4000VAC SIP 38.00*20.00*15.25
LS10-26B05R3 10 85-528 100-745 5 2000mA 1 4000VAC SIP 38.00*20.00*15.25
LS10-26B09R3 10 85-528 100-745 9 1100mA 1 4000VAC SIP 38.00*20.00*15.25
LS10-26B12R3 10 85-528 100-745 12 830mA 1 4000VAC SIP 38.00*20.00*15.25
LS10-26B15R3 10 85-528 100-745 15 670mA 1 4000VAC SIP 38.00*20.00*15.25
LS10-26B24R3 10 85-528 100-745 24 420mA 1 4000VAC SIP 38.00*20.00*15.25
