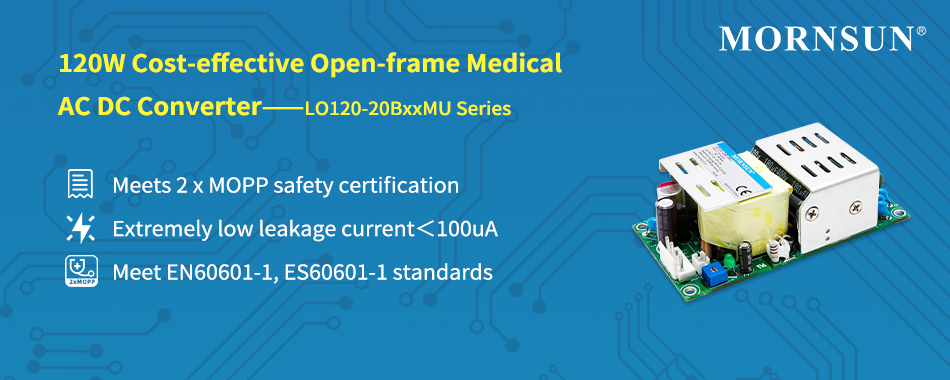

120W Open-frame Medical AC DC Converter LO120-20BxxMU Series

MORNSUN 120W Open-frame Medical AC DC Converter LO120-20BxxMU.jpg


To satisfy the demand of medical applications for medium power segment power supply, MORNSUN launches the high-reliable and cost-effective LO120-20BxxMU series (84W output power without fan, 120W output power with fan). The LO120-20BxxMU series is the most cost-effective choice for applications that do not have high requirements for size and active PFC function.


The LO120-20BxxMU series has the advantages of small size (4"*2"*1.26"), leakage current lower than 100μA, high efficiency, low power consumption, etc. It meets the reinforced insulation 2xMOPP and medical certification EN60601-1, ES60601-1. And it also has the complete protections of output short-circuit, over-current, over-voltage, etc.


Advantage


1) High reliability

① High I/O isolation test voltage up to 4000VAC

② Low leakage current<100μA

③ Meets 2 x MOPP safety certification

④ High output voltage accuracy

⑤ Meet EN60601-1, ES60601-1 standards

⑥ Low Noise


2) Compact size: 101.60*50.80*29mm


3) Wide operating temperature, high efficiency, low power consumption, low interference

① Operating temperature range:-30℃ to +70℃

② Efficiency up to 91%

③ Stand-by power consumption<0.3W

④ EMI meets CISPR32/EN55032 CLASS B, CE margin >6dB, RE margin >5dB


Application

With a high-reliable design for the medical industry, the LO120-20BxxMU series also can be used in industrial control, electric power, security, smart home, etc.

120W Open-frame Medical AC DC Converter LO120-20BxxMU.jpg



Features


● Universal input voltage range: 85-264VAC or 120-370VDC

● Operating temperature range: -30℃ to +70℃

● Compact size: 101.60*50.80*29mm

● Contact leakage current:<50μA(actual test: 36.5uA)

● Meets 5000m altitude requirements

● Output short circuit, over-current, over-voltage, over-temperature protections

● Hold-up time of 50ms(typ.)

● Efficiency up to 91%



Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LO120-20B12MU 120 85-264 120-370 12 1 4000 Open frame 101.60*50.80*32.00 - -
LO120-20B15MU 120 85-264 120-370 15 1 4000 Open frame 101.60*50.80*32.00 - -
LO120-20B24MU 120 85-264 120-370 24 1 4000 Open frame 101.60*50.80*32.00 - -
LO120-20B27MU 120 85-264 120-370 27 1 4000 Open frame 101.60*50.80*32.00 - -
LO120-20B36MU 120 85-264 120-370 36 1 4000 Open frame 101.60*50.80*32.00 - -
LO120-20B48MU 120 85-264 120-370 48 1 4000 Open frame 101.60*50.80*32.00 - -
LO120-20B54MU 120 85-264 120-370 54 1 4000 Open frame 101.60*50.80*32.00 - -
