50W DCDC Converter VRB_LD-50WR3 with no-load consumption as low as 0.048W


50W DC DC converter VRB_LD-50WR3.jpg

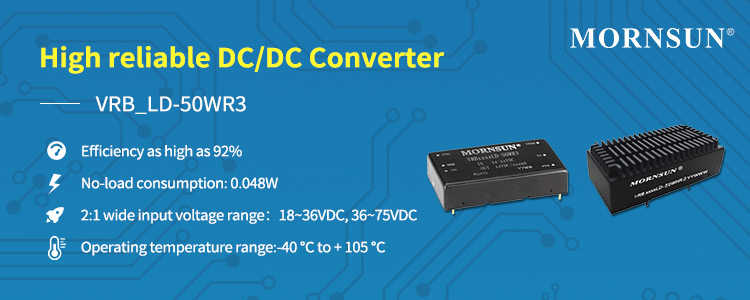

Introduction of 50W DC DC Converter VRB_LD-50WR3


To meet the market's requirement of power supply for highly reliable, we upgrade our 50W DC DC converter by its key performance. This new DC DC converter VRB_LD-50WR3 series features an operating temperature range of -40 ℃ to + 105 ℃, and no-load consumption as low as 0.048W, which is suitable for occasions requiring high operating temperature and low standby power consumption.

With a 2:1 wide voltage input range of 18~36VDC and efficiency as high as 92%, this series can be widely used in industrial control, electric power, instrumentation, communication, and other fields.

And this series has multiple protections, such as input under-voltage, output over-voltage, over-current, short circuit, and other protection to ensure the system's reliability.


Typical application of 50W DC DC Converter VRB_LD-50WR3


It can be widely used in industrial control, electric power, instrumentation, communication, and other fields.

50W DC DC converter VRB_LD-50WR3.jpg


Features of 50W DC DC Converter VRB_LD-50WR3

● Operating temperature range: -40℃ to +105℃

High efficiency up to 92%

No-load current as low as 1mA

Wide 2:1 input voltage range:18~36VDC, 36~75VDC

Six-sided metal shielding package

Input under-voltage protection, output short circuit, over-current, over-voltage protection

Meet IEC62368, UL62368, EN62368 standards





Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
VRB2403LD-50WR3 50 24(18-36) 3.3 1 1500 DIP 50.80*25.40*11.80
VRB2405LD-50WR3 50 24(18-36) 5 1 1500 DIP 50.80*25.40*11.80
VRB2412LD-50WR3 50 24(18-36) 12 1 1500 DIP 50.80*25.40*11.80
VRB2415LD-50WR3 50 24(18-36) 15 1 1500 DIP 50.80*25.40*11.80
VRB2424LD-50WR3 50 24(18-36) 24 1 1500 DIP 50.80*25.40*11.80
