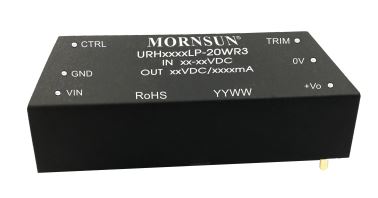

MORNSUN 20W High Isolation Medical Power URH-LP-20WR3 Series

MORNSUN new high isolation URH-LP-20WR3 series targeting medical application is designed to meet safety standard 60601-1 3rd edition for 2xMOPP and EN62368 standard. This new URH-LP-20WR3 series features low leakage current (<5µA) and 8mm transformer creepage & clearance to ensure the safety of patients. It also offers 5000VAC high isolation voltage, ultra-wide 4:1 input voltage range, and high efficiency up to 89%. Moreover, it has complete protections such as over voltage, short circuit, etc, and meets CISPR32/EN55032 CLASS A without extra components.


Applications:
URH-LP-20WR3 can be widely used in medical equipment and medical products that have direct contact with patients.


Features:
> Reinforced I/O isolation test voltage 5000VAC
> Ultra-wide 4:1 input voltage range: 9~36VDC,18~75VDC
> Operating ambient temperature range: -40℃ ~ +85℃
> Low leakage current < 5 µA

> High efficiency up to 89%

No-load power consumption as low as 0.12W
> Meets CISPR32/EN55032 CLASS A, without extra components
> Transformer creepage 8mm, Transformer clearance 8mm
> Meets 2xMOPP EN60601-1 third edition medical certification standard (Pending), EN62368 standard (Pending)

> Input under-voltage, output short-circuit, over-current, over-voltage protections

Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
URH2403LP-20WR3 20 9~36 3.3 1 5000VAC DIP 51.50*26.50*12.00 - - URH2403LP-20WR3
URH2405LP-20WR3 20 9~36 5 1 5000VAC DIP 51.50*26.50*12.00 - - URH2405LP-20WR3
URH2412LP-20WR3 20 9~36 12 1 5000VAC DIP 51.50*26.50*12.00 - - URH2412LP-20WR3
URH2415LP-20WR3 20 9~36 15 1 5000VAC DIP 51.50*26.50*12.00 - - URH2415LP-20WR3
URH2424LP-20WR3 20 9~36 24 1 5000VAC DIP 51.50*26.50*12.00 - - URH2424LP-20WR3
URH4803LP-20WR3 20 18~75 3.3 1 5000VAC DIP 51.50*26.50*12.00 - - URH4803LP-20WR3
URH4805LP-20WR3 20 18~75 5 1 5000VAC DIP 51.50*26.50*12.00 - - URH4805LP-20WR3
URH4812LP-20WR3 20 18~75 12 1 5000VAC DIP 51.50*26.50*12.00 - - URH4812LP-20WR3
URH4815LP-20WR3 20 18~75 15 1 5000VAC DIP 51.50*26.50*12.00 - - URH4815LP-20WR3
URH4824LP-20WR3 20 18~75 24 1 5000VAC DIP 51.50*26.50*12.00 - - URH4824LP-20WR3
Series
URH2403LP-20WR3
URH2405LP-20WR3
URH2412LP-20WR3
URH2415LP-20WR3
URH2424LP-20WR3
URH4803LP-20WR3
URH4805LP-20WR3
URH4812LP-20WR3
URH4815LP-20WR3
URH4824LP-20WR3
