3.3V Voltage Supply, Up to 12Mbps Transmission Speeds, Half-Duplex RS-485 Transceiver - SCM3402ASI
Mornsun launched a new half-duplex transceiver SCM3402ASI(+3.3V voltage supply), as an extention of SCM3401BFA(+5V voltage supply). Designed for the RS-485 network, the new transceiver SCM3402ASI is fully compliant with TIA/EIA-485A standards.
The SCM3402ASI transceiver contains a driver and a receiver, both of which can be independently enabled and disabled. When both are disabled, the driver and the receiver output a high-impedance state.
With a 1/8 load, the SCM3402ASI transceiver allows up to 256 transceivers on a Bus to achieve up to 12Mbps error-free data transmission. Its operating voltage range is 3.0-3.6V, and protections include fail-safe, over-temperature, limiting current and over current.


Applications:

Widely used in applications of industrial automation, building automation, smart electricity meters, remote signal interaction, transmission, etc.

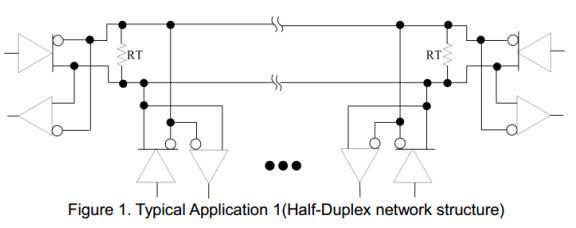

Typical block diagrams:






Features:

●  3.3V voltages supply, half-duplex
●  1/8 unit load, allowing up to 256 transceivers on the Bus
●  Transmission rate up to 12Mbps in an electrical noise environment
●  Driver output short-circuit protection
●  Over temperature protection
●  Low power shutdown function
●  Receiver open circuit protection
●  Strong anti-noise ability

●  Integrated transient voltage resistance function


Reference: Ultra-compact Size Half-duplex Enhanced RS-485 Transceiver - SCM3401BFA

Please refer to the technical manual for specific product parameters:

Series Busform VCC Signaling Rate(Max) (Mbps) No of Channel Interface Voltage Explicit Timeout Nodes Number Package Features Duplex Mode Design Reference Demo-board Datasheet Sample
SCM3402A RS485 3.0~3.6 12 1 -7~+13 - 256 SOP-8 - Half SCM3402A - SCM3402A
