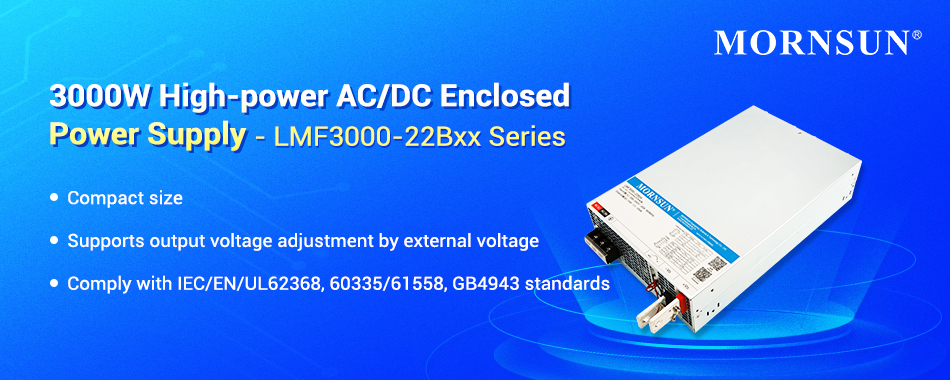

3000W High-power AC/DC Enclosed Power Supply - LMF3000-22Bxx Series

3000W High-power AC/DC Enclosed Power Supply - LMF3000-22Bxx Series.jpg

In the trend of miniaturization of terminal devices, the bulky enclosed AC/DC high-power switch power supplies commonly found in the market present a challenge. In response to this, MORNSUN has introduced the 3000W high-power supply series LMF3000-22Bxx - where high power meets compact design. It is an efficient, reliable, and cost-effective power solution all in one.


1.   Compact size: 279.40×177.80×63.50mm

2.   High efficiency up to 93%

3.   Wide operating temperature range: -40℃ to +85℃

4.   Supports output voltage adjustment by external voltage

5.   High reliability

  • CE meets CISPR32 EN55032 CLASS B; RE meets CISPR32 EN55032 CLASS A; ESD meets IEC/EN61000-4-2 Contact1±8KV/Air ±15KV

  • High isolation voltage up to 4000VAC

  • Comply with IEC/EN/UL62368, 60335/61558, GB4943 standards

  • Double-side conformal coating

  • 5 years warranty


typical application of LMF3000 is Industrial control.jpg


  • Universal 180 - 277VAC or 254 - 390VDC Input voltage

  • Wide adjustable output voltage range

  • Accepts AC or DC input (dual-use of same terminal)

  • Operating ambient temperature range: -40℃ to +85℃

  • High efficiency, high reliability

  • Active PFC

  • High isolation voltage up to 4000VAC

  • Supports 2+1 parallel redundancy

  • Output short circuit, over-current, over-voltage, and over-temperature protections

  • 5 years warranty

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample Buy
LMF3000-22B24 3000 180-277 254-390 24 125A 90.5 4000VAC
