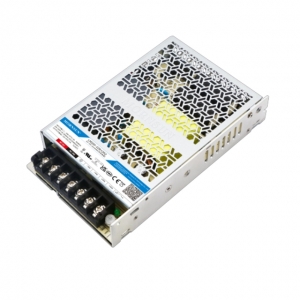

LM200-22BxxR2
Features
LM200-22BxxR2 series is the ultra-small Mornsun second-generation new industrial standard enclosed power supply, which has innovated the industrial power supply standard from the aspect of dimension, performance, technology, and structure. It features universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC/BS EN62368, EN/IEC60335, EN651558, EN62477, GB4943 standards, and they are widely used in areas of industrial, LED, streetlight control, electricity, security, telecommunications, smart home, etc.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample |
| LM200-22B12R2 | 204 | 176-305 | 240-430 | 12V | 17A | 89 | 4000VAC | ||||
| LM200-22B15R2 | 210 | 176-305 | 240-430 | 15V | 14A | 89 | 4000VAC | ||||
| LM200-22B54R2 | 210.6 | 176-305 | 240-430 | 54V | 3.9A | 92 | 4000VAC | ||||
| LM200-22B24R2 | 211.2 | 176-305 | 240-430 | 24V | 8.8A | 91 | 4000VAC | ||||
| LM200-22B48R2 | 211.2 | 176-305 | 240-430 | 48V | 4.4A | 92 | 4000VAC | ||||
| LM200-22B36R2 | 211.4 | 176-305 | 240-430 | 36V | 5.9A | 91.5 | 4000VAC |
* For reference only. The detailed info please refer to the datasheet.
