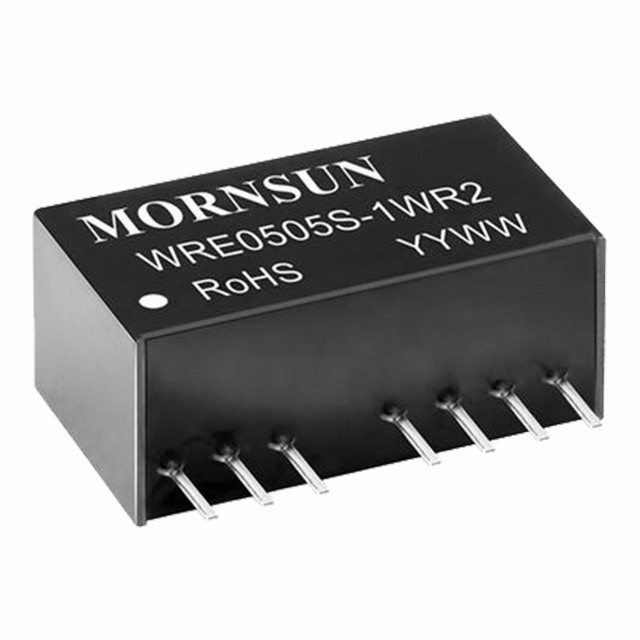

WRE_S-1WR2
Features
WRE_S-1WR2 series are isolated 1W DC-DC converters with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP plastic package, and features high efficiency, operating temperature of -40℃ to +85℃. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | Footprint & 3D | Certification | Datasheet | Sample | Buy |
| WRE0505S-1WR2 | 1 | 4.5~9 | ±5 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE0512S-1WR2 | 1 | 4.5~9 | ±12 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE0515S-1WR2 | 1 | 4.5~9 | ±15 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE1205S-1WR2 | 1 | 9~18 | ±5 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE1212S-1WR2 | 1 | 9~18 | ±12 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE1215S-1WR2 | 1 | 9~18 | ±15 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE2405S-1WR2 | 1 | 18~36 | ±5 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE2412S-1WR2 | 1 | 18~36 | ±12 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE2415S-1WR2 | 1 | 18~36 | ±15 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE4805S-1WR2 | 1 | 36~75 | ±5 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE4812S-1WR2 | 1 | 36~75 | ±12 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
| WRE4815S-1WR2 | 1 | 36~75 | ±15 | 2 | 3000 | SIP | 22.0*9.5*12.0 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
