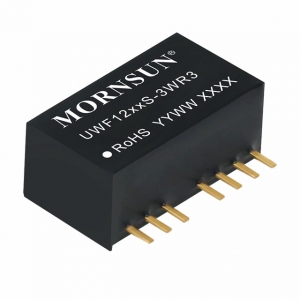

UWF_S-3WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
UWE/F_S-3WR3 series of isolated 3W DC-DC products with an ultra-wide 8:1 input voltage range. They feature efficiencies of up to 79%, 3000VDC input to output isolation, operating ambient temperature range of -40℃ to +105℃, input under-voltage protection, output over-current, short circuit protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| UWF1205S-3WR3 | 3 | 12(4.5-36) | 5 | 1 | 3000VDC | SIP | 22.00*9.50*12.00 | ||||
| UWF1212S-3WR3 | 3 | 12(4.5-36) | 12 | 1 | 3000VDC | SIP | 22.00*9.50*12.00 | ||||
| UWF1215S-3WR3 | 3 | 12(4.5-36) | 15 | 1 | 3000VDC | SIP | 22.00*9.50*12.00 |
* For reference only. The detailed info please refer to the datasheet.
