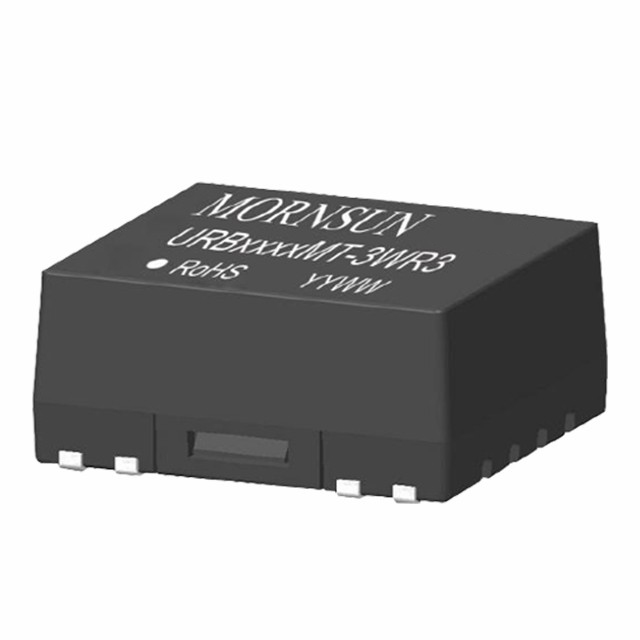

URB_MT-3WR3

Features

URB_MT-3WR3 series products are 3W output power with ultra wide range of voltage input of 9-36VDC, 18-75VDC, isolation voltage of 1500VDC, input under-voltage protection, output short circuit protection, over-current protection. It is widely used in fields such as industrial control, electric power, instruments and communication.

URB_MT-3WR3
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
URB2403MT-3WR3 3 9~36 3.3 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint - URB2403MT-3WR3 - sample request buy on line
URB2405MT-3WR3 3 9~36 5 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE UL - URB2405MT-3WR3 - sample request buy on line
URB2409MT-3WR3 3 9~36 9 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint - URB2409MT-3WR3 - sample request buy on line
URB2412MT-3WR3 3 9~36 12 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE UL - URB2412MT-3WR3 - sample request buy on line
URB2415MT-3WR3 3 9~36 15 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE UL - URB2415MT-3WR3 - sample request buy on line
URB2424MT-3WR3 3 9~36 24 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE UL - URB2424MT-3WR3 - sample request buy on line
URB4803MT-3WR3 3 18~75 3.3 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE - URB4803MT-3WR3 - sample request buy on line
URB4805MT-3WR3 3 18~75 5 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE - URB4805MT-3WR3 - sample request buy on line
URB4812MT-3WR3 3 18~75 12 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE - URB4812MT-3WR3 - sample request buy on line
URB4815MT-3WR3 3 18~75 15 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE - URB4815MT-3WR3 - sample request buy on line
URB4824MT-3WR3 3 18~75 24 1 1500 SMD 19.2*18.1*10.16 3D MODEL PCB Symbol Footprint CE - URB4824MT-3WR3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
URB2403MT-3WR3
URB2405MT-3WR3
URB2409MT-3WR3
URB2412MT-3WR3
URB2415MT-3WR3
URB2424MT-3WR3
URB4803MT-3WR3
URB4805MT-3WR3
URB4812MT-3WR3
URB4815MT-3WR3
URB4824MT-3WR3
