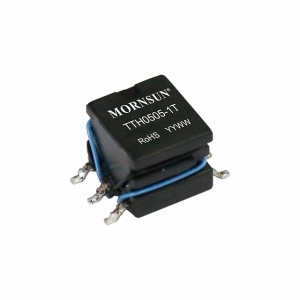

TTH0505-1T

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

TTH0505-1T transformers can be matched to used with Mornsun integrated IC to achieve a 1W DC-DC converter with 5V input and 5V output, whcih meets reinforced insulation requirements. They are especially designed for applications that require extremely high isolation, low insulation capacitor, low leakage current and compact size. They are widely used in medical, electrical grid, IGBT driver circuits.

MORNSUN_Electrical Component - Transformer_TTH0505-1T
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Skeleton structure Topology Design Reference Footprint & 3D Markings Datasheet Sample
TTH0505-1T 1 4.5-5.5 5 1 6000 SMD E41429 Push-Pull -
-

* For reference only. The detailed info please refer to the datasheet.
