LO05-12Bxx

Features

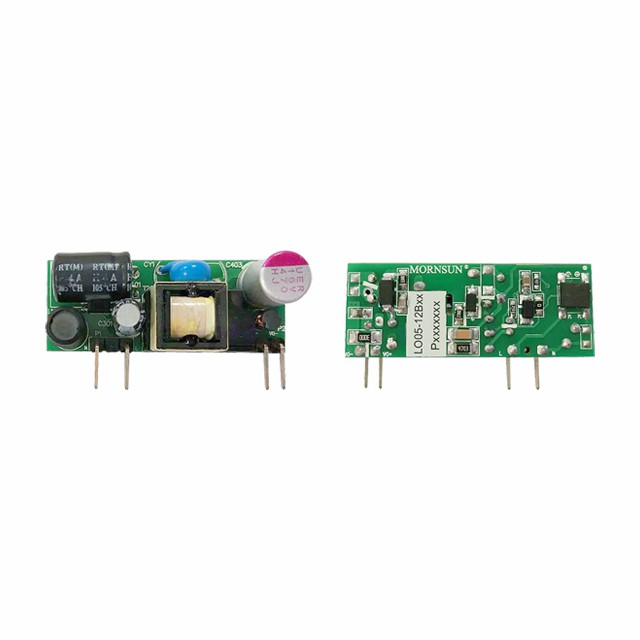

LO05-12Bxx series is one of Mornsun’s compact size power converters. It features universal AC input and at the same time accepts DC input voltage, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL/EN/IEC62368 standards. The converters are widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LO05-12B03 3.3 165-264 230-370 3.3 1000mA 1 3000VAC Open frame 42.00*16.00*17.00
-
LO05-12B05 5 165-264 230-370 5 1000mA 1 3000VAC Open frame 42.00*16.00*17.00
-
LO05-12B09 5 165-264 230-370 9 550mA 1 3000VAC Open frame 42.00*16.00*17.00
-
LO05-12B12 5 165-264 230-370 12 420mA 1 3000VAC Open frame 42.00*16.00*17.00
-
LO05-12B15 5 165-264 230-370 15 330mA 1 3000VAC Open frame 42.00*16.00*17.00
-
LO05-12B24 5 165-264 230-370 24 210mA 1 3000VAC Open frame 42.00*16.00*17.00
-

* For reference only. The detailed info please refer to the datasheet.
