LM35-20Bxx

Features

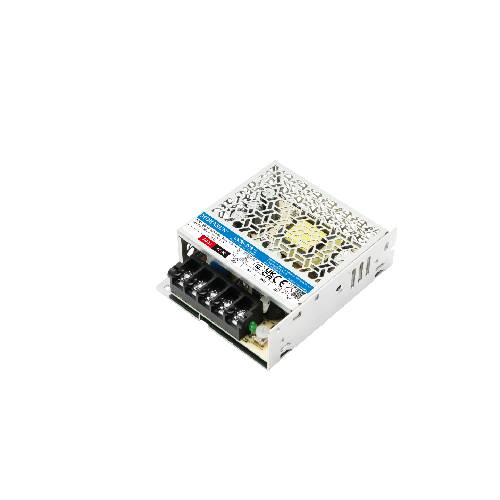

LM35-20Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/ EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

LM35-20Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
LM35-20B05 35 85~264VAC/120~373VDC 5V/7A -30℃ to +70℃ 1 82 4000 LM35-20Bxx.stp CE 3C - LM35-20B05 - sample request buy on line
LM35-20B12 36 85~264VAC/120~373VDC 12V/3A -30℃ to +70℃ 1 86 4000 LM35-20Bxx.stp CE 3C - LM35-20B12 - sample request buy on line
LM35-20B15 36 85~264VAC/120~373VDC 15V/2.4A -30℃ to +70℃ 1 87 4000 LM35-20Bxx.stp CE 3C - LM35-20B15 - sample request buy on line
LM35-20B24 36 85~264VAC/120~373VDC 24V/1.5A -30℃ to +70℃ 1 88 4000 LM35-20Bxx.stp CE 3C - LM35-20B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LM35-20B05
LM35-20B12
LM35-20B15
LM35-20B24
