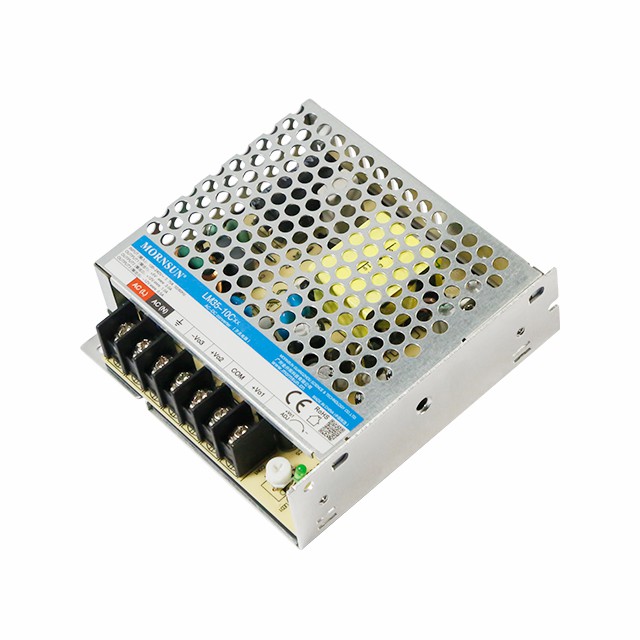

LM35-10Cxx
Features
This LM35-10Cxx series of power converter design features triple outputs, which can independently supply 3 different loads in the system. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of the fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance and high cost-effective providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample |
| LM35-10C051212-10 | 33 | 85-264 | 120-370 | 5,12,-12 | 3A,1A,0.5A | 3 | 81 | 3000VAC | ||||
| LM35-10C051515-10 | 35 | 85-264 | 120-370 | 5,15,-15 | 2.5A,1A,0.5A | 3 | 81 | 3000VAC | ||||
| LM35-10C052412-05 | 36.5 | 85-264 | 120-370 | 5,24,12 | 2.5A,0.5A,1A | 3 | 81 | 3000VAC |
* For reference only. The detailed info please refer to the datasheet.
