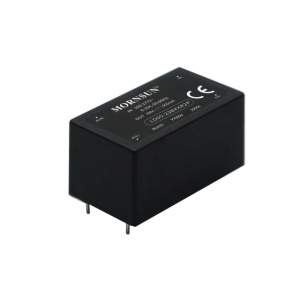

LD05-23BxxR2P
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LD05-23BxxR2PseriesAC-DCconvertersisoneofMornsun’snewgenerationcompactsizepowerconverter.Itfeaturesultra-wideACinput andatthesametimeacceptsDCinputvoltage,lowpowerconsumption,highpowerdensity,highefficiency,highreliability,reinforced isolation.ItoffersgoodEMCperformancecomplianttoIEC/EN61000-4andCISPR32/EN55032andmeetsIEC/EN/UL62368/EN60335/EN61558 standards.Theconvertersarewidelyusedinindustrial,power,homeappliances,instrumentation,communicationandcivilapplications.For extremelyharshEMCenvironment,werecommendusingtheapplicationcircuitshowinDesignReferenceofthisdatasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LD05-23B03R2P | 3.3 | 85-305 | 100-430 | 3.3 | 1000mA | 1 | 4200VAC | DIP | 37.50*21.00*19.00 | ||||
| LD05-23B05R2P | 5 | 85-305 | 100-430 | 5 | 1000mA | 1 | 4200VAC | DIP | 37.50*21.00*19.00 | ||||
| LD05-23B09R2P | 5 | 85-305 | 100-430 | 9 | 555mA | 1 | 4200VAC | DIP | 37.50*21.00*19.00 | ||||
| LD05-23B12R2P | 5 | 85-305 | 100-430 | 12 | 416mA | 1 | 4200VAC | DIP | 37.50*21.00*19.00 | ||||
| LD05-23B15R2P | 5 | 85-305 | 100-430 | 15 | 333mA | 1 | 4200VAC | DIP | 37.50*21.00*19.00 | ||||
| LD05-23B24R2P | 5 | 85-305 | 100-430 | 24 | 208mA | 1 | 4200VAC | DIP | 37.50*21.00*19.00 |
* For reference only. The detailed info please refer to the datasheet.
