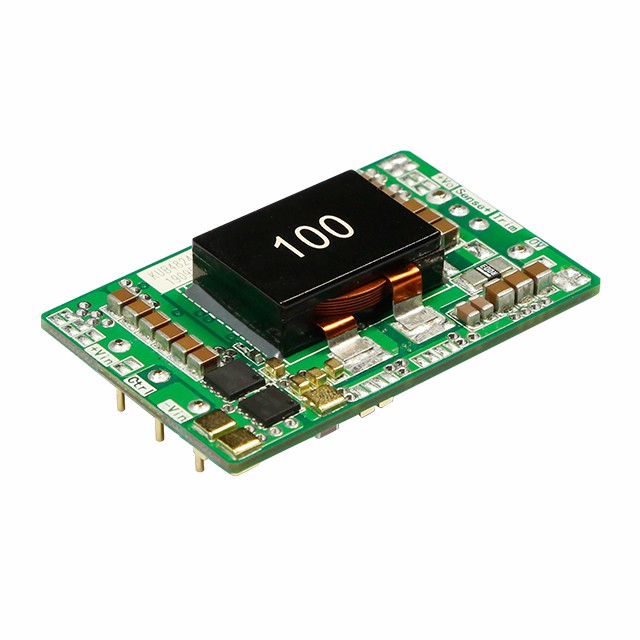

KUB48_QB-10A
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
KUB48_QB-10A series are non-isolated DC-DC products with 10A output current and wide input voltage. They feature efficiency up to 97%, operating ambient temperature of -40℃ to +85℃, input under-voltage, output short-circuit, over-current protection. The products meet CLASS A of CISPR32/EN55032 emissions standards by adding the recommended external components and they are widely used in applications such as battery powered systems and robotic field.
| Product No. | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Package | Dimension(mm) | Max capacitive load (μF) | Footprint & 3D | Markings | Datasheet | Sample |
| KUB4812QB-10A | 16-75 | 12 | 10A | 92/95 | DIP | 59.20*37.60*13.00 | 5500 | ||||
| KUB4824QB-10A | 30-75 | 24 | 10A | 94/97 | DIP | 59.20*37.60*13.00 | 3300 |
* For reference only. The detailed info please refer to the datasheet.
