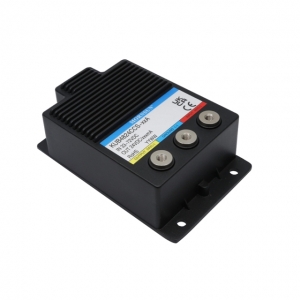

KUB4824CCS-_A
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
KUB4824CCS-_A is a non-isolated 400W/250W DC-DC converter with ultra-wide input range of 33-72VDC.Its efficiency is up to 95% and features operating temperature from -40℃ to 70℃,input under-voltage protection(＜29VDC),input reverse polarity protection,output over-voltage protection,over current and short circuit protection(current clamping protection).
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | Iout | Package | Dimension(mm) | Max capacitive load (μF) | Footprint & 3D | Markings | Datasheet | Sample |
| KUB4824CCS-10A | 250 | 48(33-72) | 24 | 10A | Chassis | 140.00*90.00*47.00 | - | ||||
| KUB4824CCS-16A | 400 | 48(33-72) | 24 | 16A | Chassis | 140.00*90.00*47.00 | - |
* For reference only. The detailed info please refer to the datasheet.
