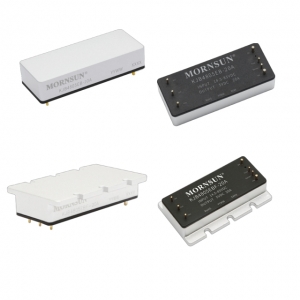

KJB48xxEB(F)-20A
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
-20A.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | Iout | Package | Dimension(mm) | Max capacitive load (μF) | Footprint & 3D | Markings | Datasheet | Sample |
| KJB4805EB-20A | 100 | 48(14.5-85) | 5 | 20A | DIP | 60.80*25.00*12.70 | 8500 | - | |||
| KJB4805EBF-20A | 100 | 48(14.5-85) | 5 | 20A | DIP | 60.80*36.83*12.70 | 8500 | - | |||
| KJB4812EB-20A | 240 | 48(18-85) | 12 | 20A | DIP | 60.80*25.00*12.70 | 5500 | - | |||
| KJB4812EBF-20A | 240 | 48(18-85) | 12 | 20A | DIP | 60.80*36.83*12.70 | 5500 | - | |||
| KJB4815EB-20A | 300 | 48(21-85) | 15 | 20A | DIP | 60.80*25.00*12.70 | 4400 | - | |||
| KJB4815EBF-20A | 300 | 48(21-85) | 15 | 20A | DIP | 60.80*36.83*12.70 | 4400 | - | |||
| KJB4824EB-20A | 480 | 48(30-85) | 24 | 20A | DIP | 60.80*25.00*12.70 | 2200 | - | |||
| KJB4824EBF-20A | 480 | 48(30-85) | 24 | 20A | DIP | 60.80*36.83*12.70 | 2200 | - | |||
| KJB4836EB-15A | 540 | 48(43-85) | 36 | 15A | DIP | 60.80*25.00*12.70 | 680 | - | |||
| KJB4836EBF-15A | 540 | 48(43-85) | 36 | 15A | DIP | 60.80*36.83*12.70 | 680 | - |
* For reference only. The detailed info please refer to the datasheet.
