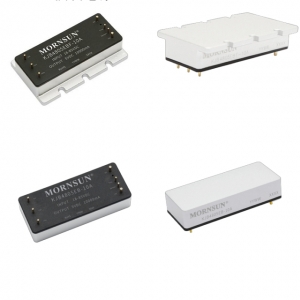

KJB48xxEB(F)-10A
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
-10A.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | Iout | Package | Dimension(mm) | Max capacitive load (μF) | Footprint & 3D | Markings | Datasheet | Sample |
| KJB4805EB-10A | 50 | 48,72(18-85) | 5 | 10A | DIP | 60.80*25.00*12.70 | 8500 | ||||
| KJB4805EBF-10A | 50 | 48,72(18-85) | 5 | 10A | DIP | 60.80*36.83*12.70 | 8500 | ||||
| KJB4812EB-10A | 120 | 48,72(18-85) | 12 | 10A | DIP | 60.80*25.00*12.70 | 5500 | ||||
| KJB4812EBF-10A | 120 | 48,72(18-85) | 12 | 10A | DIP | 60.80*36.83*12.70 | 5500 | ||||
| KJB4815EB-10A | 150 | 48,72(21-85) | 15 | 10A | DIP | 60.80*25.00*12.70 | 4400 | ||||
| KJB4815EBF-10A | 150 | 48,72(21-85) | 15 | 10A | DIP | 60.80*36.83*12.70 | 4400 | ||||
| KJB4824EB-10A | 240 | 48,72(30-85) | 24 | 10A | DIP | 60.80*25.00*12.70 | 3300 | ||||
| KJB4824EBF-10A | 240 | 48,72(30-85) | 24 | 10A | DIP | 60.80*36.83*12.70 | 3300 | ||||
| KJB4836EB-10A | 360 | 48,72(43-85) | 36 | 10A | DIP | 60.80*25.00*12.70 | 1800 | ||||
| KJB4836EBF-10A | 360 | 48,72(43-85) | 36 | 10A | DIP | 60.80*36.83*12.70 | 1800 |
* For reference only. The detailed info please refer to the datasheet.
