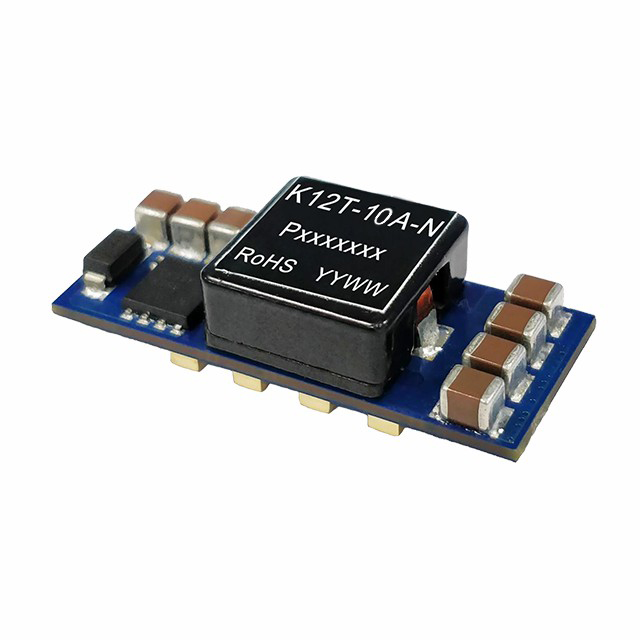

K12T-10A

Features

K12T-10A series is a 10A non-isolated switching regulator. The output voltage is accurately adjustable from 0.75V to 5.0V, and the product is featured with high efficiency, fast transient response, input under-voltage, output short circuit, over-current protection. They meet CLASS B of CISPR32/EN55032 EMI standards by adding the recommended external components and they are widely used in applications such as communications, computer network industry, power distributed architecture, workstations, servers, LANs/WANs and provide high current with fast transient response for high-speed chips such as FPGA, DSP, and ASIC.

K12T-10A
MORE
数据加载中

Swipe to view all →
Product No. Vin(VDC) Vout(VDC) Iout(mA) No. of Outputs Package Dimension(mm) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
K12T-10A-P 8.3~14 0.75~5 10000 1 SMD 33.00*13.50*8.30 K12T-10A.stp CE - K12T-10A-P - sample request buy on line
K12T-10A-N 8.3~14 0.75~5 10000 1 SMD 33.00*13.50*8.30 K12T-10A.stp CE - K12T-10A-N - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
K12T-10A-P
K12T-10A-N
