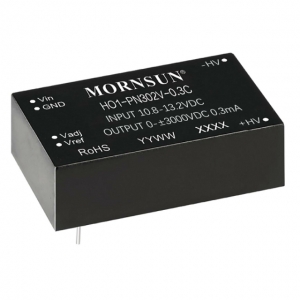

HO1-PN302V-0.3C

Features

HO1-PN302V-0.3C offers output power 1.8W,it features with operating ambient temperature range -40℃ to + 85℃,output short circuit
protection,over-current protection,ultra-small size packaging,±3000VDC dual independent adjustable output,high output voltage
stability,low time drift,temperature drift,low ripple,which are specifically designed for applications in board power systems where high
voltages are required and output ripple requirement sare high and output voltage stability iscritical.Product sare widely applicable:lon
mobility spectrum,mass spectrum,light spectrum.electron beam,ion beam and other high pres sure applications.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
HO1-PN302V-0.3C 1.8 12 ±3000 2 DIP 46.00*25.70*15.50
-

* For reference only. The detailed info please refer to the datasheet.
