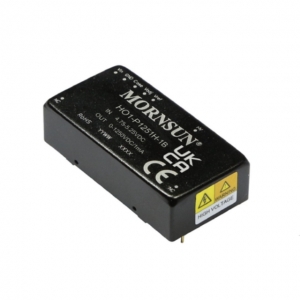

HO1-P(N)xxxxH-1B

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

HO1-P(N)xxxxH-0.5B series offer 0.625W-1.25W of output. It features -25℃ to +71℃ operating ambient temperature range, input reverse polarity protection, control voltage over-voltage protection, output short circuit protection, over-current protection, six-sided metal shielding package, low ripple, low time coefficient and temperature coefficient. It is specifically designed for applications in board power systems where high voltages are required and output ripple requirements are high and output voltage stability is critical. They are widely used in fields such as photomultiplier tubes, mass spectrum, light spectrum, electron beam, ion beam, avalanche diodes.

MORNSUN_DC/DC - High Voltage Output Converter_HO1-P(N)xxxxH-1B
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
HO1-P1251H-1B 0.75 5 0~1250 1 DIP 45.50*23.00*12.50
HO1-N1251H-1B 0.75 5 0~-1250 1 DIP 45.50*23.00*12.50

* For reference only. The detailed info please refer to the datasheet.
