EMC Filter for the LM AC/DC Enclosed SMPS - FC-LxxWx Series

EMC Filter for the LM AC/DC Enclosed SMPS

Introduction

EMC interference caused by application environmental is common during power supply design. MORNSUN announced the introduction of its new EMC filter FC-LxxWx series for the AC/DC enclosed switching power supplies.



Advantages

1. High Immunity to CM & DM Interference

Based on the first-order filtering scheme, the EMC filter FC-LxxWx series has a high immunity to CM & DM interference, which can effectively ensure the stability and reliability of the whole system.

  • FC-L03Wx’s immunity to CM interference: 50dB@20MHz

  • FC-L03Wx’s immunity to DM interference: 75dB@10MHz

  • FC-L06Wx’s immunity to CM interference: 55dB@20MHz

  • FC-L06Wx’s immunity to DM interference: 75dB@10MHz

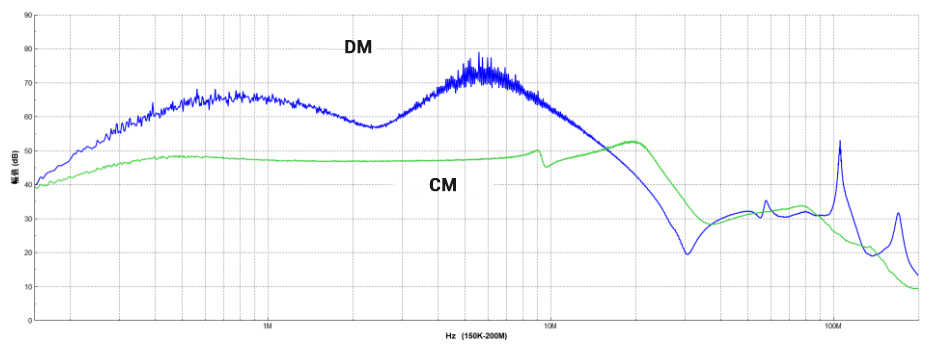

High Immunity to CM & DM Interference.jpg

The graphic of Insertion Loss


2. High Immunity to surge voltage

There is an excellent impact on the rear equipment because of the surge caused by the fluctuation of power grid. Besides, the improper protection of the back equipment may also cause faults or rebooting. FC-LxxWx products applied to the power supply input have high immunity to surge voltage, such as the surge of DM up to 4kV and surge of CM up to 6kV. (Conventional filters can support 2kV/4kV).


3. Good EMI Immunity performance

  • CE CISPR32/EN55032    CLASS B

  • RE CISPR32/EN55032    CLASS B

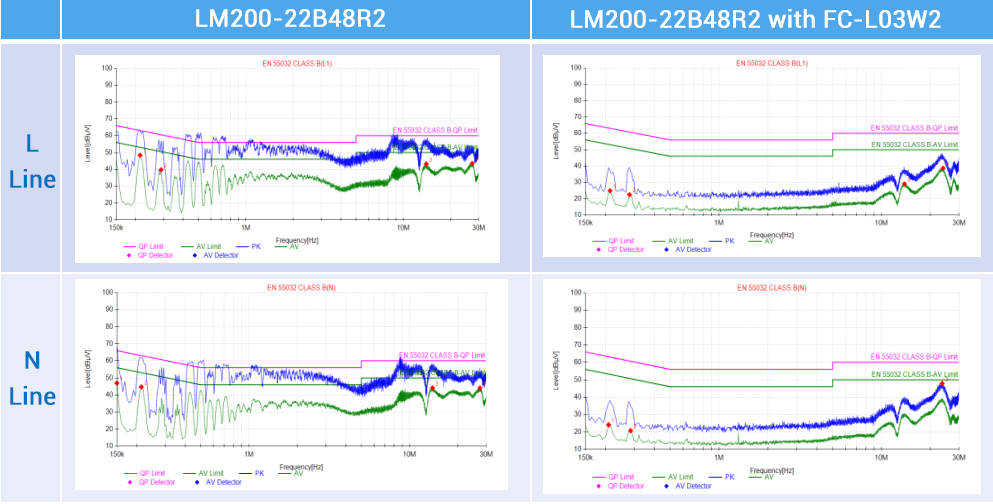

Good EMI Immunity performance of CE.jpg

The graphic of CE test

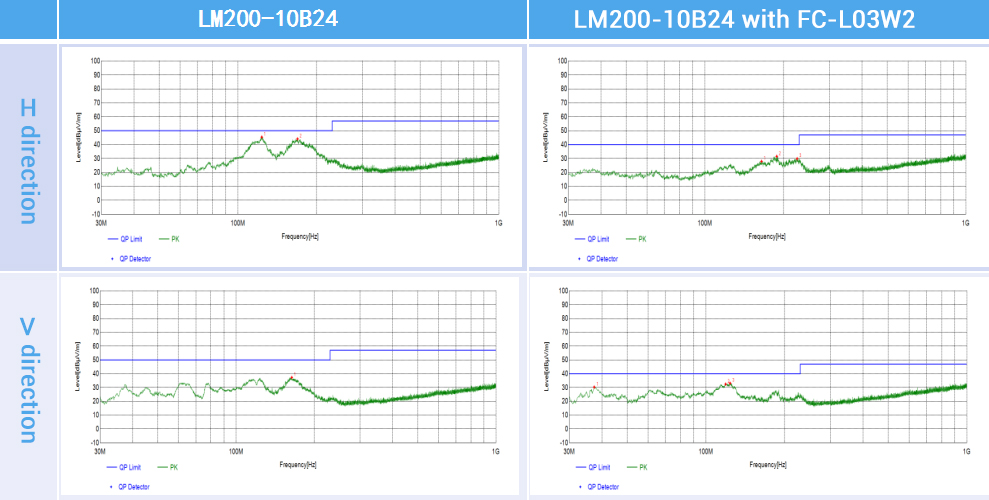

Good EMI Immunity performance of RE.jpg

The graphic of RE test


4. Multiple packages for a wide range of applications

  • Standard series are wiring package: 85*39*28.9mm

  • Series with suffix “A2S” are chassis mounting: 85*39*29.9mm

  • Series with suffix “A4S”are DIN rail mounting: 89*39*36.4mm


5. Compliance with Industry Safety

FC-LxxWx series features high reliability with CE markings (IEC60939/62368). When used with MORNSUN Enclosed switching power supplies LM series, the EMI performance of the whole system can be improved.



Applications

FC-LxxWx series can be used with MORNSUN Enclosed switching power supplies LM series (LM35, LM100, LM200, LM350, etc.) for the applications of High-speed railway power, welding machine, inverter, photovoltaic inverter, motor inverter, UPS power supply, charging pile, motor control, etc.

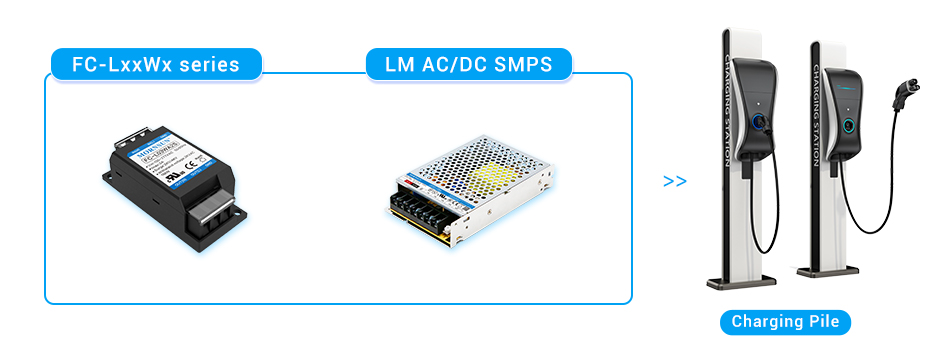

typical application of AC/DC Enclosed SMPS and EMC Filter is ev charging pile.jpg


Features

  • Ultra wide input voltage range: 0-305VAC / 0-430VDC

  • Operating temperature range: -40℃ to +85℃

  • EMC compliance: IEC/EN61000-4, CISPR32/EN55032

  • High surge suppression capability: 2KV/4KV, 4KV/6KV

  • Insertion loss DM up to 75dB & CM up to 50dB

  • Compliance with safety standards IEC62368/IEC60939



Selection Guide

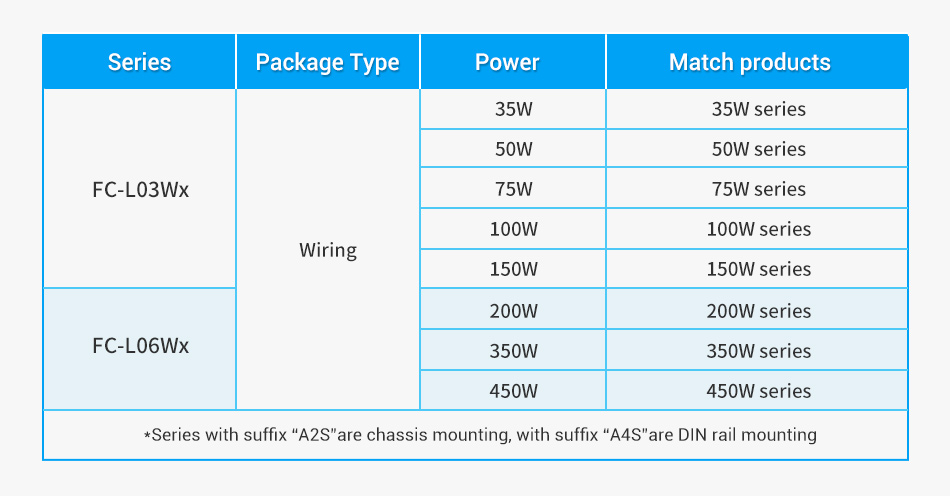

Selection Guide for AC/DC Enclosed SMPS's EMC Filter - FC-LxxWx Series.jpg

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Vin(VAC) Current (A)(max) Operating Temperature Package Dimension(mm) Supporting Power Supply Surge Voltage (KV) Footprint & 3D Datasheet Sample Buy
FC-L03W 230(0-305) 3 -40~85℃ DIN-Rail 85.00*39.00*28.90 AC-DC ±2/±4,±4/±6
FC-L03W2 230(0-305) 3 -40~85℃ DIN-Rail 85.00*39.00*28.90 AC-DC ±2/±4,±4/±6
FC-L06W 230(0-305) 6 -40~85℃ DIN-Rail 85.00*39.00*28.90 AC-DC ±2/±4,±4/±6
FC-L06W2 230(0-305) 6 -40~85℃ DIN-Rail 85.00*39.00*28.90 AC-DC ±2/±4,±4/±6
