100W DC/DC converter VCB_EBO-100WR3 support the development of 5G industry

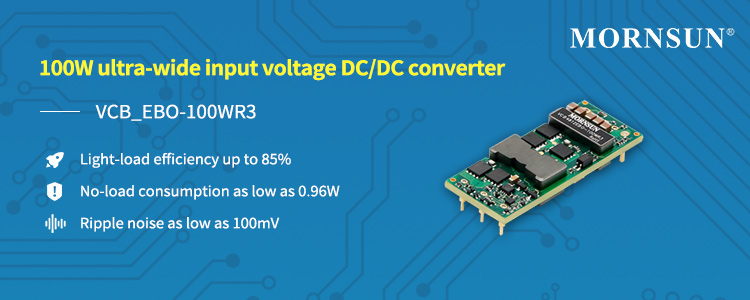

MORNSUN VCB_EBO-100WR3 | 100W DC/DC converter | 5G industry.jpg


Introduction of VCB_EBO-100WR3

The newly released 1/8-brick 100W telecom power supply VCB_EBO-100WR3 series features superior performance, small size, and high power density to support the development of the 5G industry.

VCB_EBO-100WR3 meets IEC/UL/EN62368 and DOSA standards, with a wide operating temperature range of -40℃ to +100℃, excellent performance even at temperature derating, isolation voltage of 1500VDC, ripple noise as low as 100mV, high efficiency up to 93%. Its light load (10%) efficiency is as high as 85%, and the no-load loss is as low as 0.96W, which can greatly reduce the standby power consumption of the whole system.

In addition, all devices of VCB_EBO-100WR3 are painted with conformal coating to protect the circuit board from the erosion of bad conditions. And its multiple protections of input under-voltage, over-current, short-circuit, etc. can effectively prevent unnecessary losses caused by abnormal operation of customer systems or equipment.


Applications of VCB_EBO-100WR3

The modules can be widely used in industrial control, electric power, instrumentation, telecommunication, and others.


VCB_EBO-100WR3 | 100W DC/DC converter | 5G industry.jpg

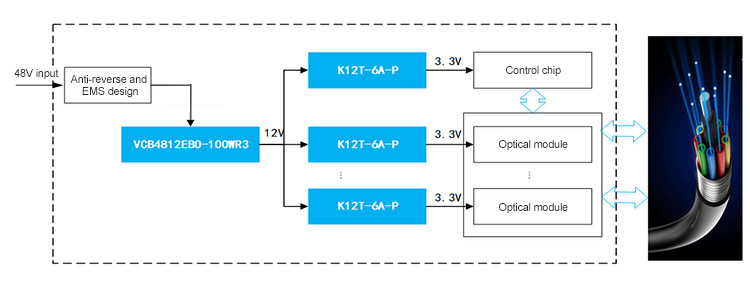

Typical application: Fiber optic Ethernet switch

VCB_EBO-100WR3 | 100W DC/DC converter | 5G industry.jpg


VCB4812EBO-100WR3 is used as the main power supply, and the back end is converted to a low-voltage power supply for the main control chip and optical module through the POL power supply.


Features of VCB_EBO-100WR3

●  Operating temperature range: -40℃ to +100℃.

●  Efficiency up to 93%

●  light load efficiency up to 85%

●  Ripple noise as low as 100mV

●  No-load consumption as low as 0.96W

●  EMI performance meets CISPR32/EN55032 ClassA.

●  Meets IEC/UL/EN62368 and DOSA standards.


Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
VCB4805EBO-100WFR3 100 48(36-75) 5 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4805EBO-100WR3 100 48(36-75) 5 1 1500 DIP 58.42*22.86*9.69
VCB4812EBO-100WFR3 100 48(36-75) 12 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4812EBO-100WR3 100 48(36-75) 12 1 1500 DIP 58.42*22.86*9.69
VCB4815EBO-100WFR3 100 48(36-75) 15 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4815EBO-100WR3 100 48(36-75) 15 1 1500 DIP 58.42*22.86*9.69
VCB4824EBO-100WFR3 100 48(36-75) 24 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4824EBO-100WR3 100 48(36-75) 24 1 1500 DIP 58.42*22.86*9.69
VCB4828EBO-100WFR3 100 48(36-75) 28 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4828EBO-100WR3 100 48(36-75) 28 1 1500 DIP 58.42*22.86*9.69
