15-150W AC/DC enclosed power supply LMxx-23Bxx in 305RAC family, reliable under all conditions

305VAC Input 15-150W LMxx-23Bxx

Introduction of 305VAC Input 15-150W LMxx-23Bxx

The LMxx-23Bxx series of enclosed power supply in MORNSUN 305RAC(reliable under all conditions) familyit can be used not only in the normal operating conditions, but also in applications with higher requirements for input voltage, temperature, humidity, altitude, and electromagnetic interference for long time. The input voltage range is as wide as 85-305VAC, and the power range covers 15-150W. The only 25mm height is more superior to the industry level. At the same time, it has the advantages of isolation voltage as high as 4000VAC, no-load power as low as 0.5W, and efficiency as high as 88%. It adopts a double Y design and meets IEC/EN/UL62368/CCC certification standards.



Main Operation Condition of 305VAC Input 15-150W LMxx-23Bxx

1) Voltage Fluctuation


The input voltage range is 85-305VAC/100-430VDC, which solves the three major shortcomings of conventional 85-264VAC input products: LM-23B

a. The universal input voltage of 85-305VAC covers the standard voltage of 110/220/277VAC.)

b.It solves the power failure caused by voltage fluctuations in grid power distribution or generator.

c.It can also work normally under the transient high input voltage (the input voltage exceeds 264VAC when the device is turned off).

2) High Altitude

It meets the 5000m altitude application, and the product has passed a high/low-temperature altitude test, long-term aging test, etc.


3) EMI


a.EMI meets CLASS B reducing harm to the human body and interference to other equipment;

b.Surge immunity is up to 4KV, strong anti-interference ability is suitable for harsh environment applications.


4) High/Low Temperature

The wide operating temperature range is -30 to +70. The product can still work at full load and has a strong start-up ability while at a low temperature of -30; when it is running at 70, the temperature rise of product components is low and the service life is long.

In order to meet the diversified application, MORNSUN has simultaneously launched extended models:

LMxx-23Bxx-Q It has a three-proof paint process and features excellent insulation, multiple resistance of moisture, leakage, vibration, dust, corrosion, aging, corona, and other properties, which is suitable for harsh industrial environments.

LMxx-23Bxx-CIt has a terminal cover that can prevent the human from touching the terminal by mistake.

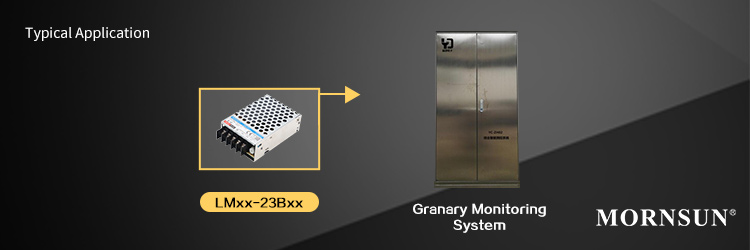

Application of 305VAC Input 15-150W LMxx-23Bxx

305VAC Input 15-150W LMxx-23Bxx can be widely used in industrial control, LED, street light control, electricity, security, telecommunications, smart home, etc. And it is suitable for those applications with high requirement of dimensions and EMI.








 Features of 305VAC Input 15-150W LMxx-23Bxx in 305RAC family

● Universal input voltage: 85 - 305VAC/100 - 430VDC

● Accepts AC or DC input (dual-use of same terminal)

● Operating temperature range: -30℃ to +70℃

● Efficiency up to 88%

● Low standby power consumption: < 0.5W

● I/O isolation voltage: 4000VAC

● Output short circuit, over-current, over-voltage protections

● Safety according to IEC/EN/UL62368, GB4943 (Pending)

● Withstand 335VAC surge input for 5s

● Over-voltage class Ⅲ (designed to meet EN61558)

● Operating altitude up to 5000m


Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample
LM100-23B05 90 85~305VAC/120~431VDC 5V/18A -30℃ to +70℃ 1 85.5 4000 3D MODEL Footprint CE UL CB 3C LM100-23B05
LM100-23B12 102 85~305VAC/120~431VDC 12V/8.5A -30℃ to +70℃ 1 87 4000 3D MODEL Footprint CE UL CB 3C LM100-23B12
LM100-23B15 105 85~305VAC/120~431VDC 15V/7.0A -30℃ to +70℃ 1 87 4000 3D MODEL Footprint CE UL CB 3C LM100-23B15
LM100-23B24 108 85~305VAC/120~431VDC 24V/4.5A -30℃ to +70℃ 1 89.5 4000 3D MODEL Footprint CE UL CB 3C LM100-23B24
LM100-23B36 100.8 85~305VAC/120~431VDC 36V/2.8A -30℃ to +70℃ 1 89.5 4000 3D MODEL Footprint CE UL CB 3C LM100-23B36
LM100-23B48 110.4 85~305VAC/120~431VDC 48V/2.3A -30℃ to +70℃ 1 90.5 4000 3D MODEL Footprint CE UL CB 3C LM100-23B48
LM15-23B03 9.9 85~305VAC/100~430VDC 3.3V/3.0A -30℃ to +70℃ 1 83 4000 3D MODEL CE 3C UL CB LM15-23B03
LM15-23B05 15 85~305VAC/100~430VDC 5V/3.0A -30℃ to +70℃ 1 83 4000 3D MODEL CE 3C UL CB LM15-23B05
LM15-23B12 15.6 85~305VAC/100~430VDC 12V/1.3A -30℃ to +70℃ 1 83 4000 3D MODEL CE 3C UL CB LM15-23B12
LM15-23B15 15 85~305VAC/100~430VDC 15V/1.0A -30℃ to +70℃ 1 83 4000 3D MODEL CE 3C UL CB LM15-23B15
LM15-23B24 15 85~305VAC/100~430VDC 24V/0.625A -30℃ to +70℃ 1 83 4000 3D MODEL CE 3C UL CB LM15-23B24
LM15-23B48 15.36 85~305VAC/100~430VDC 48V/0.32A -30℃ to +70℃ 1 83 4000 3D MODEL CE 3C UL CB LM15-23B48
LM150-23B12 150 85~305VAC/120~431VDC 12V/12.5A -30℃ to +70℃ 1 86 4000 3D MODEL Footprint CE UL CB 3C LM150-23B12
LM150-23B15 150 85~305VAC/120~431VDC 15V/10A -30℃ to +70℃ 1 87 4000 3D MODEL Footprint CE UL CB 3C LM150-23B15
LM150-23B24 150 85~305VAC/120~431VDC 24V/6.5A -30℃ to +70℃ 1 88 4000 3D MODEL Footprint CE UL CB 3C LM150-23B24
LM150-23B36 150 85~305VAC/120~431VDC 36V/4.3A -30℃ to +70℃ 1 88 4000 3D MODEL Footprint CE UL CB 3C LM150-23B36
LM150-23B48 150 85~305VAC/120~431VDC 48V/3.3A -30℃ to +70℃ 1 89 4000 3D MODEL Footprint CE UL CB 3C LM150-23B48
LM25-23B03 19.8 85~305VAC/100~430VDC 3.3V/6A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C UL CB LM25-23B03
LM25-23B05 25 85~305VAC/100~430VDC 5V/5A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C UL CB LM25-23B05
LM25-23B12 25.2 85~305VAC/100~430VDC 12V/2.1A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C UL CB LM25-23B12
LM25-23B15 25.5 85~305VAC/100~430VDC 15V/1.7A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C UL CB LM25-23B15
LM25-23B24 26.4 85~305VAC/100~430VDC 24V/1.1A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C UL CB LM25-23B24
LM25-23B48 27.36 85~305VAC/100~430VDC 48V/0.57A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C UL CB LM25-23B48
LM35-23B05 35 85~305VAC/120~430VDC 5V/7A -30℃ to +70℃ 1 81 4000 3D MODEL Footprint CE CB 3C UL LM35-23B05
LM35-23B12 35 85~305VAC/120~430VDC 12V/3A -30℃ to +70℃ 1 85 4000 3D MODEL Footprint CE CB 3C UL LM35-23B12
LM35-23B15 35 85~305VAC/120~430VDC 12V/3A -30℃ to +70℃ 1 86 4000 3D MODEL Footprint CE CB 3C UL LM35-23B15
LM35-23B24 35 85~305VAC/120~430VDC 12V/3A -30℃ to +70℃ 1 87 4000 3D MODEL Footprint CE CB 3C UL LM35-23B24
LM50-23B05 50 85~305VAC/120~430VDC 5V/10A -30℃ to +70℃ 1 83 4000 3D MODEL Footprint CE 3C UL LM50-23B05
LM50-23B12 50.4 85~305VAC/120~430VDC 12V/4.2A -30℃ to +70℃ 1 86 4000 3D MODEL Footprint CE 3C UL LM50-23B12
LM50-23B15 51 85~305VAC/120~430VDC 15V/3.4A -30℃ to +70℃ 1 87 4000 3D MODEL Footprint CE 3C UL LM50-23B15
LM50-23B24 52.8 85~305VAC/120~430VDC 24V/2.2A -30℃ to +70℃ 1 88 4000 3D MODEL Footprint CE 3C UL LM50-23B24
LM50-23B36 52.2 85~305VAC/120~430VDC 36V/1.45A -30℃ to +70℃ 1 89 4000 3D MODEL Footprint CE 3C UL LM50-23B36
LM50-23B48 52.8 85~305VAC/120~430VDC 48V/1.1A -30℃ to +70℃ 1 90 4000 3D MODEL Footprint CE 3C UL LM50-23B48
LM75-23B05 70 85~305VAC/120~430VDC 5V/14A -30℃ to +70℃ 1 85 4000 3D MODEL Footprint CE 3C UL LM75-23B05
LM75-23B12 72 85~305VAC/120~430VDC 12V/6A -30℃ to +70℃ 1 87 4000 3D MODEL Footprint CE 3C UL LM75-23B12
LM75-23B15 75 85~305VAC/120~430VDC 12V/6A -30℃ to +70℃ 1 87 4000 3D MODEL Footprint CE 3C UL LM75-23B15
LM75-23B24 76.8 85~305VAC/120~430VDC 24V/3.2A -30℃ to +70℃ 1 89 4000 3D MODEL Footprint CE 3C UL LM75-23B24
LM75-23B36 75.6 85~305VAC/120~430VDC 36V/2.1A -30℃ to +70℃ 1 90 4000 3D MODEL Footprint CE 3C UL LM75-23B36
LM75-23B48 76.8 85~305VAC/120~430VDC 48V/1.6A -30℃ to +70℃ 1 90.5 4000 3D MODEL Footprint CE 3C UL LM75-23B48
