150W 250-1500VDC Ultra-wide Input Voltage DC/DC Module - PV150-29Bxx Series

Mornsun launched a 150W 250-1500VDC ultra-wide input voltage PV series PV150-29Bxx.Till now, the ultra-wide input voltage PV family covers output powers including 5W, 10W, 15W, 40W, 120W, 150W, 200W.

The new PV150-29Bxx series features 4000VAC isolation voltage and a wide input voltage range of 250-1500VDC. Its efficiency is up to 84% at 800V input voltage. PV150-29Bxx series also provides output voltages of 12V, 15V, 24V, 48V.

In addition, -40℃ to +70℃ industrial operating temperature range(the derating of output power is lower than 65% during the temperature of 55℃ to 70℃), and meeting 5000m altitude application requirements(no derating ≤2000m) make PV150-29Bxx series idea for environments of thin air and outdoor high altitude with large temperature difference day and night.

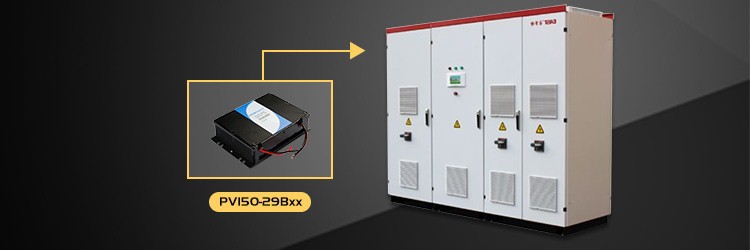

Widely used in applications of photovoltaic inverter system and tracking system.




1. Ultra wide input voltage range: 250 - 1500VDC

2. Wide applications
Industrial grade operating temperature: -40℃ to +70℃
Meets 5000 altitude requirements

3. High reliability
4000VAC high isolation voltage
MTBF over 300,000h
High efficiency, low ripple & noise, high reliability, long lifespan
3 years warranty
Input under-voltage protection, reverse input voltage protection, output short circuit, over-current, over-voltage protection
Meets CSA-C22.2 No.107.1, EN62109 standards

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
PV150-29B12 120 250-1500 12 1 Chassis 168.00*111.20*42.50
PV150-29B15 120 250-1500 15 1 Chassis 168.00*111.20*42.50
PV150-29B24 150 250-1500 24 1 Chassis 168.00*111.20*42.50
PV150-29B28 150 250-1500 28 1 Chassis 168.00*111.20*42.50
PV150-29B32 150 250-1500 32 1 Chassis 168.00*111.20*42.50
PV150-29B48 150 250-1500 48 1 Chassis 168.00*111.20*42.50
