100-1000VDC Input DC/DC Converter——PV15-27BxxR3 series

100-1000VDC Input DC/DC Converter PV15-27BxxR3 series.jpg


Introduction of PV15-27BxxR3 series


MORNSUN 5-200W ultra-wide input voltage range DC-DC converter PV series has received a solid reputation for its powerful performance and cost-effective since its launch. With an optional input voltage range of 100-1500VDC and an operating temperature range of -40~70℃, PV series can be used for applications of photovoltaic combiner boxes, inverters, energy storage BMS and charging piles, etc. These modules feature an isolation voltage of 4000VAC, output over-voltage protection, short circuit protection, and input against reverse protection which ensure the stability of the circuit.


Along with our technological advancements, we upgraded and launched our new generation product PV-R3 series with better performance and better cost. The newest PV15-27BxxR3 series has an input range of 100-1000VDC which could withstand a transient voltage up to 1200VDC for the 60S. And they are designed to have the input under-voltage protection,meet UL1741 standard and 5000m altitude application, which make them especially suitable for high altitude outdoor harsh occasions.


Application of PV15-27BxxR3 series

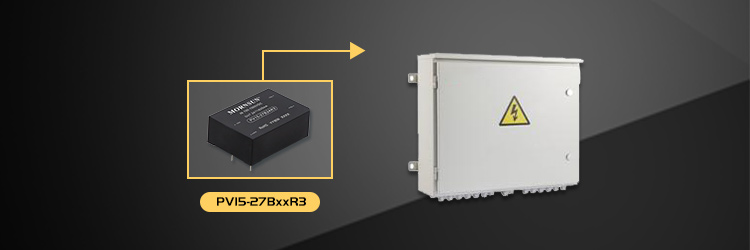

It can be widely used in the monitoring system of the combiner box, inverter system, photovoltaic tracking system, and other occasions.


100-1000VDC Input DC/DC Converter PV15-27BxxR3 series.jpg


Features of PV15-27BxxR3 series



●  Wide 10:1 input voltage range: 100 -1000VDC (Transient 1200VDC, duration : 60s)

●  Operating temperature: -40℃ to +70℃

●  High I/O isolation voltage: 4000VAC

●  5000m altitude application

●  Input under-voltage, reverse input voltage, output short circuit, over-current, over–voltage protection

●  Designed to meet UL1741, CSA-C22.2 No.107.1, EN62109 standards




Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
PV15-27B12R3 15 100~1000 12 1 4000 DIP 70.0*48.0*23.5 3D MODEL PCB Symbol Footprint CE PV15-27B12R3
PV15-27B15R3 15 100~1000 15 1 4000 DIP 70.0*48.0*23.5 3D MODEL PCB Symbol Footprint CE PV15-27B15R3
PV15-27B24R3 15 100~1000 24 1 4000 DIP 70.0*48.0*23.5 3D MODEL PCB Symbol Footprint CE PV15-27B24R3
Series
PV15-27B12R3
PV15-27B15R3
PV15-27B24R3
