6W Automotive-standard DC DC Converter ——CVRC1215JD-6WR3

6W Automotive-standard DCDC Converter CVRC1215JD-6WR3


MORNSUN's latest automotive-standard DC/DC converter, CVRC1215JD-6WR3, features a 3000VDC isolation voltage and an operating temperature range from -40°C to +105°C with an 82% efficiency. And the product has sustainable short-circuit protection (self-recovery), and EMI meets the automotive standards EN55025/ CISPR25 level 4. It also meets the AEC-Q100 automotive standards, which can better meet the requirements of the automotive industry for high reliability and small dimension.

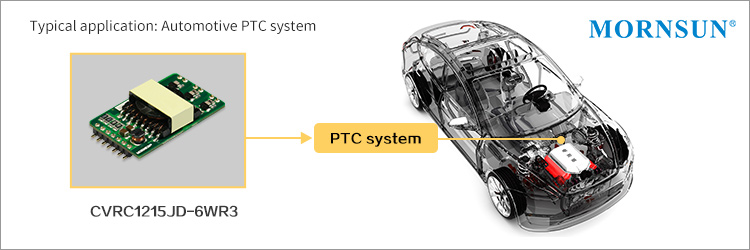

Application of 6W Automotive-standard DC DC Converter CVRC1215JD-6WR3


6W Automotive-standard DC DC Converter CVRC1215JD-6WR3 is widely used in automotive electronics, medical, industrial control, electricity, instrumentation, communications, and other industry.




Features of 6W Automotive-standard DC DC Converter CVRC1215JD-6WR3



 Meets AEC-Q100 automotive standards
 Operating temperature range:-40℃ to +105℃
 Isolated voltage 3000VDC
 EMI meets automotive standards EN55025/CISPR25 level 4
 Wide input range(9-18VDC)
 Efficiency up to 82%
 Non-load power consumption 0.12W
 Input under-voltage, output short circuit, over current and over-voltage protection




Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
CVRC1215JD-6WR3 6 9~18 15 3 3000 SMD 42.10*25.00*10.50 - CE CVRC1215JD-6WR3
Series
CVRC1215JD-6WR3
