WRF_S-1WR2

Features

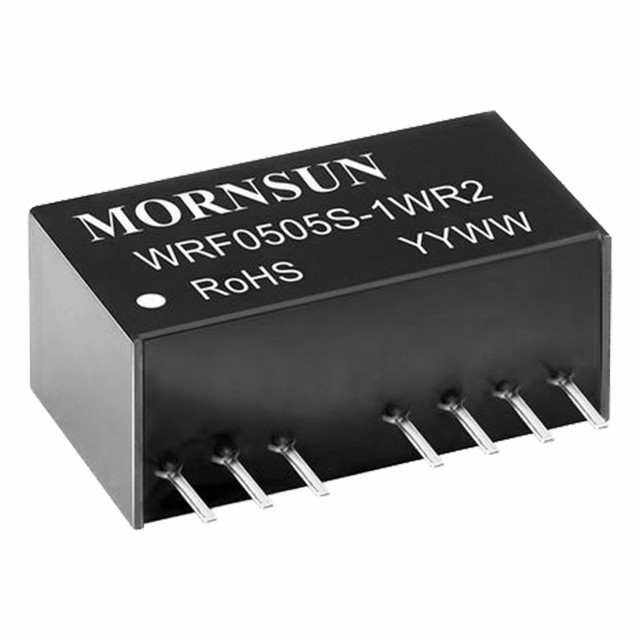

WRF_S-1WR2 series are isolated 1W DC-DC converters with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP plastic package, and features high efficiency, operating temperature of -40℃ to +85℃. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications.

WRF_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
WRF0505S-1WR2 1 4.5~9 5 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF0505S-1WR2 - sample request buy on line
WRF0512S-1WR2 1 4.5~9 12 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF0512S-1WR2 - sample request buy on line
WRF0515S-1WR2 1 4.5~9 15 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF0515S-1WR2 - sample request buy on line
WRF1205S-1WR2 1 9~18 5 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF1205S-1WR2 - sample request buy on line
WRF1212S-1WR2 1 9~18 12 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF1212S-1WR2 - sample request buy on line
WRF1215S-1WR2 1 9~18 15 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF1215S-1WR2 - sample request buy on line
WRF2403S-1WR2 1 18~36 3.3 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF2403S-1WR2 - sample request buy on line
WRF2405S-1WR2 1 18~36 5 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF2405S-1WR2 - sample request buy on line
WRF2412S-1WR2 1 18~36 12 1 3000 SIP 22.0*9.5*12.0 3D MODEL - WRF2412S-1WR2 - sample request buy on line
WRF2415S-1WR2 1 18~36 15 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF2415S-1WR2 - sample request buy on line
WRF2424S-1WR2 1 18~36 24 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF2424S-1WR2 - sample request buy on line
WRF4803S-1WR2 1 18~36 3.3 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF4803S-1WR2 - sample request buy on line
WRF4805S-1WR2 1 36~75 5 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF4805S-1WR2 - sample request buy on line
WRF4812S-1WR2 1 36~75 12 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF4812S-1WR2 - sample request buy on line
WRF4815S-1WR2 1 36~75 15 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF4815S-1WR2 - sample request buy on line
WRF1203S-1WR2 1 9~18 3.3 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF1203S-1WR2 - sample request buy on line
WRF1209S-1WR2 1 9~18 9 1 3000 SIP 22.0*9.5*12.0 3D MODEL CE - WRF1209S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
WRF0505S-1WR2
WRF0512S-1WR2
WRF0515S-1WR2
WRF1205S-1WR2
WRF1212S-1WR2
WRF1215S-1WR2
WRF2403S-1WR2
WRF2405S-1WR2
WRF2412S-1WR2
WRF2415S-1WR2
WRF2424S-1WR2
WRF4803S-1WR2
WRF4805S-1WR2
WRF4812S-1WR2
WRF4815S-1WR2
WRF1203S-1WR2
WRF1209S-1WR2
