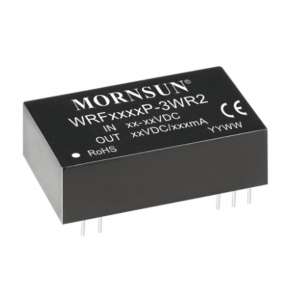

WRF_P-3WR2
Features
The WRF_P-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact DIP package, and features high efficiency, operating temperature of -40℃ to +85℃, remote control, and continuous short-circuit protection. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| WRF0505P-3WR2 | 3 | 5(4.5-9) | 5 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF0512P-3WR2 | 3 | 5(4.5-9) | 12 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF0515P-3WR2 | 3 | 5(4.5-9) | 15 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF1203P-3WR2 | 3 | 12(9-18) | 3.3 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF1205P-3WR2 | 3 | 12(9-18) | 5 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | - | ||||
| WRF1212P-3WR2 | 3 | 12(9-18) | 12 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | - | ||||
| WRF1215P-3WR2 | 3 | 12(9-18) | 15 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF1224P-3WR2 | 3 | 12(9-18) | 24 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF2403P-3WR2 | 3 | 24(18-36) | 3.3 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF2405P-3WR2 | 3 | 24(18-36) | 5 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF2412P-3WR2 | 3 | 24(18-36) | 12 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF2415P-3WR2 | 3 | 24(18-36) | 15 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF2424P-3WR2 | 3 | 24(18-36) | 24 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | |||||
| WRF4805P-3WR2 | 3 | 48(36-75) | 5 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | - | ||||
| WRF4812P-3WR2 | 3 | 48(36-75) | 12 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 | - | ||||
| WRF4815P-3WR2 | 3 | 48(36-75) | 15 | 1 | 3000VDC | DIP | 31.60*20.30*10.20 |
* For reference only. The detailed info please refer to the datasheet.
