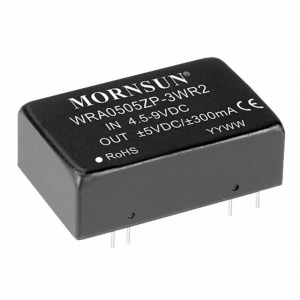

WRA_ZP-3WR2
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
The WRA_ZP-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact DIP package, and features high efficiency, operating temperature of -40℃ to +85℃, remote control, and continuous short-circuit protection. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| WRA0505ZP-3WR2 | 3 | 5(4.5-9) | ±5 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA0509ZP-3WR2 | 3 | 5(4.5-9) | ±9 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA0512ZP-3WR2 | 3 | 5(4.5-9) | ±12 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA0515ZP-3WR2 | 3 | 5(4.5-9) | ±15 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA1205ZP-3WR2 | 3 | 12(9-18) | ±5 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA1209ZP-3WR2 | 3 | 12(9-18) | ±9 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA1212ZP-3WR2 | 3 | 12(9-18) | ±12 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA1215ZP-3WR2 | 3 | 12(9-18) | ±15 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA2405ZP-3WR2 | 3 | 24(18-36) | ±5 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA2412ZP-3WR2 | 3 | 24(18-36) | ±12 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA2415ZP-3WR2 | 3 | 24(18-36) | ±15 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA4805ZP-3WR2 | 3 | 48(36-75) | ±5 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA4812ZP-3WR2 | 3 | 48(36-75) | ±12 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA4815ZP-3WR2 | 3 | 48(36-75) | ±15 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 | ||||
| WRA4824ZP-3WR2 | 3 | 48(36-75) | ±24 | 2 | 1500VDC | DIP | 32.00*20.00*10.80 |
* For reference only. The detailed info please refer to the datasheet.
