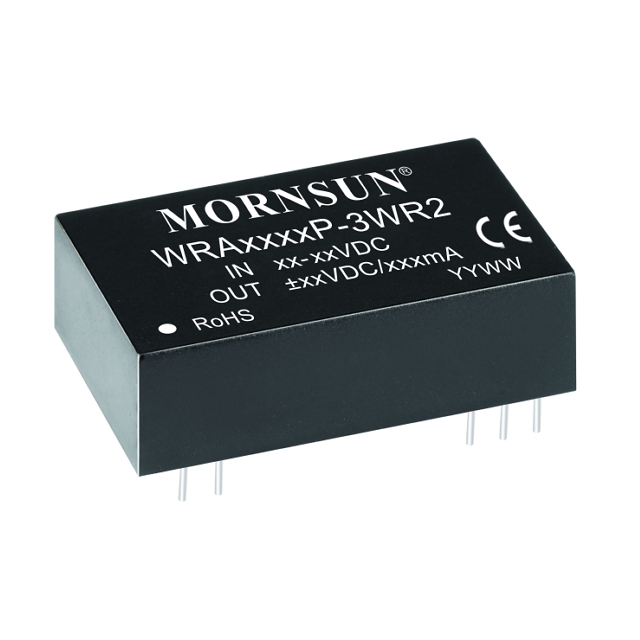

WRA_P-3WR2
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
The WRA_P-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact DIP package, and features high efficiency, operating temperature of -40℃ to +85℃, remote control, and continuous short-circuit protection. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| WRA0505P-3WR2 | 3 | 5(4.5-9) | ±5 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA0512P-3WR2 | 3 | 5(4.5-9) | ±12 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA0515P-3WR2 | 3 | 5(4.5-9) | ±15 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA1205P-3WR2 | 3 | 12(9-18) | ±5 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA1209P-3WR2 | 3 | 12(9-18) | ±9 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA1212P-3WR2 | 3 | 12(9-18) | ±12 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA1215P-3WR2 | 3 | 12(9-18) | ±15 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA2405P-3WR2 | 3 | 24(18-36) | ±5 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA2412P-3WR2 | 3 | 24(18-36) | ±12 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA2415P-3WR2 | 3 | 24(18-36) | ±15 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA4812P-3WR2 | 3 | 48(36-75) | ±12 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 | ||||
| WRA4815P-3WR2 | 3 | 48(36-75) | ±15 | 2 | 1500VDC | DIP | 31.60*20.30*10.20 |
* For reference only. The detailed info please refer to the datasheet.
