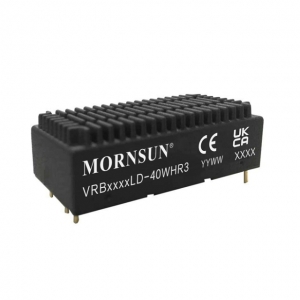

VRB_LD-40WHR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
VRB_LD-40WHR3 series are isolated 40W DC-DC products with 2:1 input voltage. They feature efficiency up to 91%, 1500VDC isolation, operating temperature of -40℃ to +85℃, output short circuit protection, over-voltage protection, over-current protection , which make them widely applied in data transmission device, battery power supply device, telecommunication device, distributed power supply system, remote control system, industrial robot fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VRB2405LD-40WHR3 | 40 | 24(18-36) | 5 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | - | |||
| VRB2412LD-40WHR3 | 40 | 24(18-36) | 12 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | ||||
| VRB2415LD-40WHR3 | 40 | 24(18-36) | 15 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | ||||
| VRB2424LD-40WHR3 | 40 | 24(18-36) | 24 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | ||||
| VRB4812LD-40WHR3 | 40 | 48(36-75) | 12 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | ||||
| VRB4815LD-40WHR3 | 40 | 48(36-75) | 15 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 | ||||
| VRB4824LD-40WHR3 | 40 | 48(36-75) | 24 | 1 | 1500VDC | DIP | 51.40*26.20*16.50 |
* For reference only. The detailed info please refer to the datasheet.
