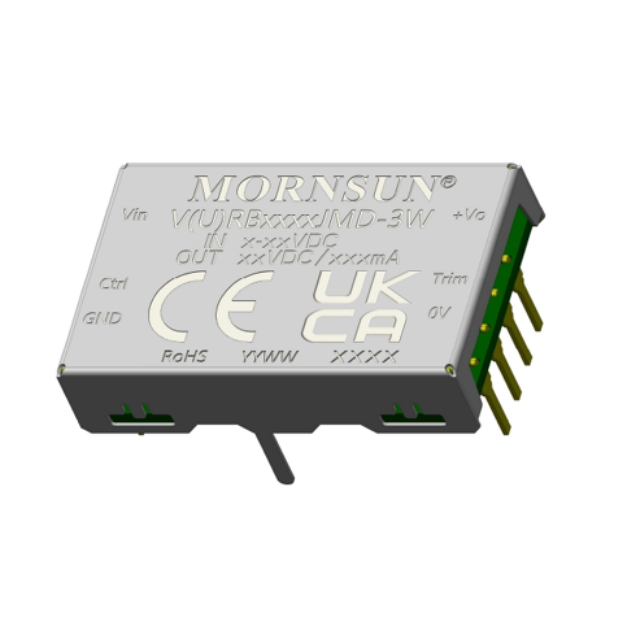

VRB_JMD-3W
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
VRB_JMD-3W series are isolated 3W DC-DC converter products have an ultra-wide input voltage and feature efficiencies of to 82%, input to output isolation is tested with 500VAC / 1500VDC, input under-voltage protection, output over-voltage, over-current, short circuit protection and they are widely used in applications such as industrial control, electricity, instruments and communication fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VRB0505JMD-3W | 3 | 5(4.5-9) | 5 | 1 | 1500VDC | DIP | 25.00*16.40*6.80 | ||||
| VRB0512JMD-3W | 3 | 5(4.5-9) | 12 | 1 | 1500VDC | DIP | 25.00*16.40*6.80 | ||||
| VRB0515JMD-3W | 3 | 5(4.5-9) | 15 | 1 | 1500VDC | DIP | 25.00*16.40*6.80 | ||||
| VRB0524JMD-3W | 3 | 5(4.5-9) | 24 | 1 | 1500VDC | DIP | 25.00*16.40*6.80 |
* For reference only. The detailed info please refer to the datasheet.
