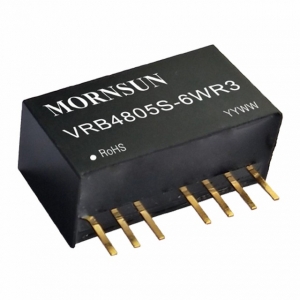

VRB4805S-6WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
VRB4805S-6WR3 are isolated 6W DC-DC converter with 2:1 input voltage with efficiencies of up to 80%, 1600VDC input to output isolation and the converter safely operate ambient temperature of -40℃ to +85℃, input under-voltage protection, output over-current, short circuit protection and it is widely used in applications such as medical care, industrial control, electric power, instruments and communication fields.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VRB4805S-6WR3 | 6 | 48(36-75) | 5 | 1 | 1600VDC | SIP | 22.00*9.50*12.00 | - |
* For reference only. The detailed info please refer to the datasheet.
