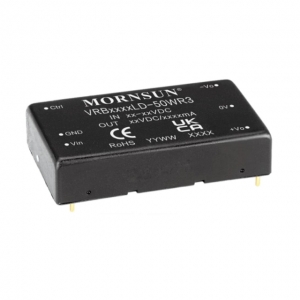

VRB24_LD-50W(H)R3(A2S/A4S)
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
VRB24_LD-50W(H)R3 series are isolated 50W DC-DC converter products with a wide 2:1 input voltage range. They feature efficiencies up to 91%, input to output isolation is tested with 1500VDC and the converter safety operate ambient temperature of -40℃ to +105℃, input under-voltage protection, output over-voltage, over-current, short-circuit, protection. They are ideally and widely used in applications such as industrial control, electric power, instruments and communications.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VRB2403LD-50WR3 | 50 | 24(18-36) | 3.3 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | ||||
| VRB2405LD-50WR3 | 50 | 24(18-36) | 5 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | ||||
| VRB2412LD-50WR3 | 50 | 24(18-36) | 12 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | ||||
| VRB2415LD-50WR3 | 50 | 24(18-36) | 15 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 | ||||
| VRB2424LD-50WR3 | 50 | 24(18-36) | 24 | 1 | 1500VDC | DIP | 50.80*25.40*11.80 |
* For reference only. The detailed info please refer to the datasheet.
