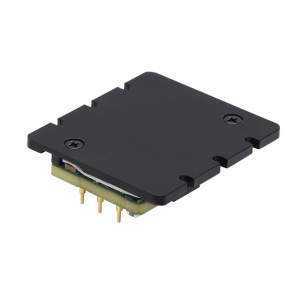

VCF48_QBO-400W(F/H)R3(-N)
Features
VCF48_QBO-400W(F/H)R3 series is a high-performance product designed for the field of communication power supply. The DC-DC converters feature 400W output power with no requirement for minimum load, wide input voltage from 36-75VDC, and allowing operating temperature as high as 85℃. Additional product features include input under-voltage protection, output over-voltage, over-current, short-circuit and over-temperature protection, remote On/Off control, remote sense compensation, output voltage trim adjustment. The products meet CLASS B of CISPR32/EN55032 standards by adding the recommended external components, and they are widely used in applications such as battery power supplies, industrial control, electricity, instruments, communication and intelligent robotic.
R3.jpg)
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VCF4812QBO-400WR3 | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4812QBO-400WFR3 | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4812QBO-400WHR3 | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | ||||
| VCF4815QBO-400WR3 | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4815QBO-400WFR3 | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4815QBO-400WHR3 | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | ||||
| VCF4824QBO-400WR3 | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4824QBO-400WFR3 | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4824QBO-400WHR3 | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | ||||
| VCF4828QBO-400WR3 | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4828QBO-400WFR3 | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4828QBO-400WHR3 | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | ||||
| VCF4812QBO-400WR3-N | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4812QBO-400WFR3-N | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4812QBO-400WHR3-N | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | ||||
| VCF4815QBO-400WR3-N | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4815QBO-400WFR3-N | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4815QBO-400WHR3-N | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | ||||
| VCF4824QBO-400WR3-N | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4824QBO-400WFR3-N | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4824QBO-400WHR3-N | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | ||||
| VCF4828QBO-400WR3-N | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | ||||
| VCF4828QBO-400WFR3-N | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | ||||
| VCF4828QBO-400WHR3-N | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 |
* For reference only. The detailed info please refer to the datasheet.
