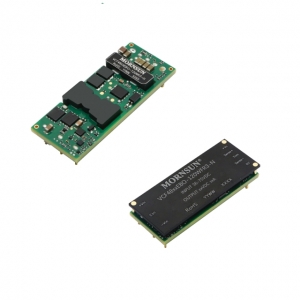

VCF48_EBO-120W(F)R3-N

Features

VCF48_EBO-120W(F)R3-N series of isolated 75W DC-DC converter products with an wide 2:1 input voltage and feature efficiencies of up to
93.5%,input to output isolation is tested with 2250VDC and the converters safety operate ambient temperature of -40℃ to + 100℃,input
under-voltage protection,output over-voltage,over-current,short-circuit protection,over-temperature protection.Meets EN62368
 standards.They are ideally and widely used in applications such as industrial control,electric power,instruments and communications.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
VCF4805EBO-120WR3-N 120 48(36-75) 5 1 2250VDC DIP 58.42*22.86*9.69 -
VCF4812EBO-120WR3-N 120 48(36-75) 12 1 2250VDC DIP 58.42*22.86*9.69 -
VCF4805EBO-120WFR3-N 120 48(36-75) 5 1 2250VDC DIP 58.42*22.86*12.70 -
VCF4812EBO-120WFR3-N 120 48(36-75) 12 1 2250VDC DIP 58.42*22.86*12.70 -
VCF4824EBO-120WFR3-N 120 48(36-75) 24 1 2250VDC DIP 58.42*22.86*12.70 -
VCF4824EBO-120WR3-N 120 48(36-75) 24 1 2250VDC DIP 58.42*22.86*9.69 -
VCF4828EBO-120WR3-N 120 48(36-75) 28 1 2250VDC DIP 58.42*22.86*9.69 - -
VCF4828EBO-120WFR3-N 120 48(36-75) 28 1 2250VDC DIP 58.42*22.86*12.70 - -
VCF4848EBO-120WR3-N 120 48(36-75) 48 1 2250VDC DIP 58.42*22.86*9.69 - -
VCF4848EBO-120WFR3-N 120 48(36-75) 48 1 2250VDC DIP 58.42*22.86*12.70 - -

* For reference only. The detailed info please refer to the datasheet.
