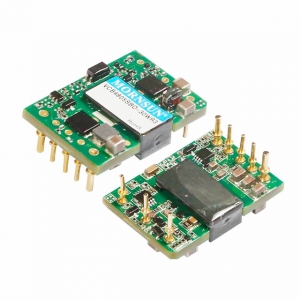

VCB48_SBO-30WR3

Features

VCB48_SBO-30WR3 series are isolated 30W DC-DC converter products with a 2:1 input voltage range. They feature efficiencies of up to 90%, 1500VDC input to output isolation, operating temperature of -40℃ to +85℃, input under-voltage protection, output over-voltage, over-current, short circuit protection and over-temperature protection, which is widely used in communication field, such as switches, repeaters, intelligent communication gateways, GPS synchronous clock and 4G/5G base station etc.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
VCB4805SBO-30WR3 30 48(36-75) 5 1 1500VDC DIP(without housing) 33.02*22.86*9.18
VCB4812SBO-30WR3 30 48(36-75) 12 1 1500VDC DIP(without housing) 33.02*22.86*9.18
VCB4815SBO-30WR3 30 48(36-75) 15 1 1500VDC DIP(without housing) 33.02*22.86*9.18
VCB4824SBO-30WR3 30 48(36-75) 24 1 1500VDC DIP(without housing) 33.02*22.86*9.18
VCB4828SBO-30WR3 30 48(36-75) 28 1 1500VDC DIP(without housing) 33.02*22.86*9.18
-

* For reference only. The detailed info please refer to the datasheet.
