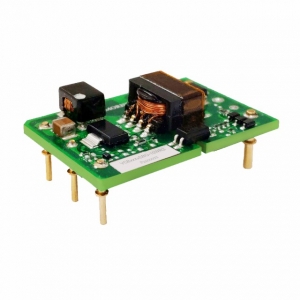

VCB48_SBO-10WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
VCB48_SBO-10WR3 series are isolated 10W DC-DC converter products with a 2:1 input voltage range. They feature efficiencies of up to 88%, 1500VDC input to output isolation, operating temperature of -40℃ to +85℃, input under-voltage protection, output over-voltage, over-current and short circuit protection, which is widely used in communication field, such as switches, repeaters, intelligent communication gateways, GPS synchronous clock and 4G/5G base station etc.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| VCB4805SBO-10WR3 | 10 | 48(36-75) | 5 | 1 | 1500VDC | DIP | 33.02*22.86*11.40 | ||||
| VCB4812SBO-10WR3 | 10 | 48(36-75) | 12 | 1 | 1500VDC | DIP | 33.02*22.86*11.40 | ||||
| VCB4815SBO-10WR3 | 10 | 48(36-75) | 15 | 1 | 1500VDC | DIP | 33.02*22.86*11.40 | ||||
| VCB4824SBO-10WR3 | 10 | 48(36-75) | 24 | 1 | 1500VDC | DIP | 33.02*22.86*11.40 |
* For reference only. The detailed info please refer to the datasheet.
